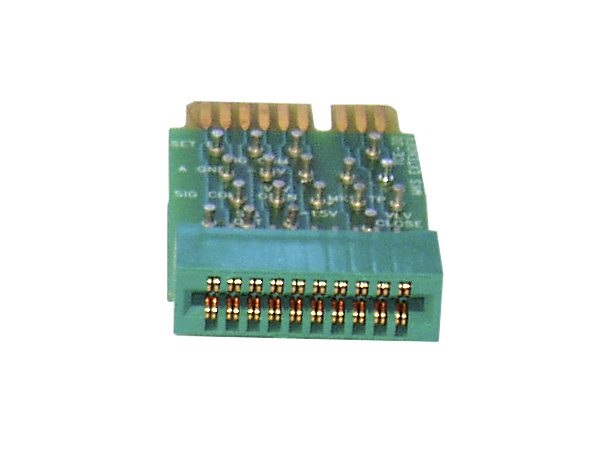

Test Diagnostic Board, 20 pin edge card, female to male
Model: TCE-20
Test Diagnostic Board, 20 pin edge card, female to male
Test Diagnostic Board, 20 pin edge card, female to male
Model: TCE-20
Overview
Overview
The TCE-20 Test Diagnostic Board with a 20 pin edge card in a female-to-male configuration, enables insitu monitoring of instrument input and output signals, supply power and ground quality, and can also be used to calibrate and zero MKS transducers and mass flow controllers.
Technical Specs
-
TypeTest Diagnostic Board
-
Signal OutputBuffered, log linear and linear output for each channel and log linear for combined channels
-
For Use WithMKS Mass Flow Controllers, Baratron Capacitance Manometers
-
Connector20 pin edge card, female to male
-
Display UnitsTorr, mbar, Pascal, sccm, slm
-
Set Point RelaysTwelve pressure dependent set points (4 per card slot), SPST relays, contact rating 2 Amps @ 30 VAC
-
Storage Humidity80% max for temperatures less than 31°C, decreasing linearly to 50% maximum at 40°C
-
DimensionsHalf 19 inch Rack, 2U, 3.47 x 9.47 x 13.00 in.
