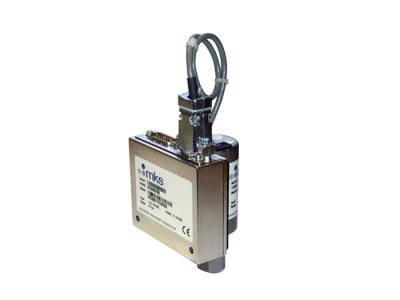

Specifications

  • Type
    Pressure Transducer
  • Sensor Type
    Industrial Capacitance Manometer
  • Measurement Type
    Absolute
  • Full Scale Pressure Ranges
    10 Torr (13 mbar) to 3000 PSI (204 bar)
  • Accuracy
    ±1% of Reading
  • Resolution
    ±0.01% of Full Scale
  • Repeatability
    ±0.1% of Reading
  • Analog Output
    0-10 VDC into >10 k Ω load
  • Electrical Connector
    15-pin D-sub
  • Zero Temperature Coefficient
    0.02% of Full Scale/°C
  • Span Temperature Coefficient
    0.04% of Reading/°C
  • Volume
    4.7 cc
  • Overpressure Limit
    45 PSI or 2x Full Scale (whichever is greater)
  • Burst Pressure
    Full Scale ranges of 1000 PSI or less: 100 PSI or 10x FS (whichever is greater)
    Full Scale ranges of more than 1000 PSI: 5x Full Scale
  • Power Requirements
    ±15VDC (± 5%) @ 35 mA (max)
  • Response Time
    20 msec
  • Relay Specifications
    Two independently-adjusted DPDT contacts adjustable between 0.5% and 100% of FS. UL listed and rated at 1.0 amps @ 30 VDC or 0.3 amps @ 30 VAC.
  • Weight
    1.0 lbs (0.4 kg)
  • Compliance
    Compliant with EMC Directive 2004/108/EC
    Compliant with Directive 2002-95-EC

Features

15-pin Type "D" Pin-Outs

Pin Description
1 Relay Contact A, N.O.
2 Pressure Output
3 Reserved
4 Reserved
5 Power Return
6 -15 VDC
7 +15 VDC
8 Relay Contact A, N.C.
9 Relay Contact B, N.C.
10 Trip Point A, Setting
11 Trip Point B, Setting
12 Pressure Return
13 Relay contact B, N.O.
14 Relay Contact B, Common
15 Relay contact A, Common
