PAC Endpoint I/O Remote Data Monitoring Solution
Overview
The PAC Endpoint Remote I/O Monitor with integrated SenseLink™ software provides monitoring and alarm capabilities ensuring factory process control and product quality. The PAC End Point system has flexible I/O features and is compact enough to be mounted close to any data source, making remote monitoring, alarm control and real-time data streaming to factory servers simple. All configuration is easily done via a user-friendly web browser interface.
This device is ideal for acquiring analog and digital I/O data without a local computer. Each signal is acquired and stored locally and is available to download via the web interface. Local operations include signal scaling, alarming and optional control tasks. Alarms can be customized for specific process steps. The web browser-based user interface allows users to access critical graphical process data using Java-based charting tools. Users can also select timeframes of interest and download process data to their local PC in text and CSV formats.
- Supports serial tool communication with web-based monitor & control
- Instant data monitoring with sampling rates up to 100 Hz
- Downloadable data via a web browser from local data storage
- Customizable for specific endpoint control applications
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

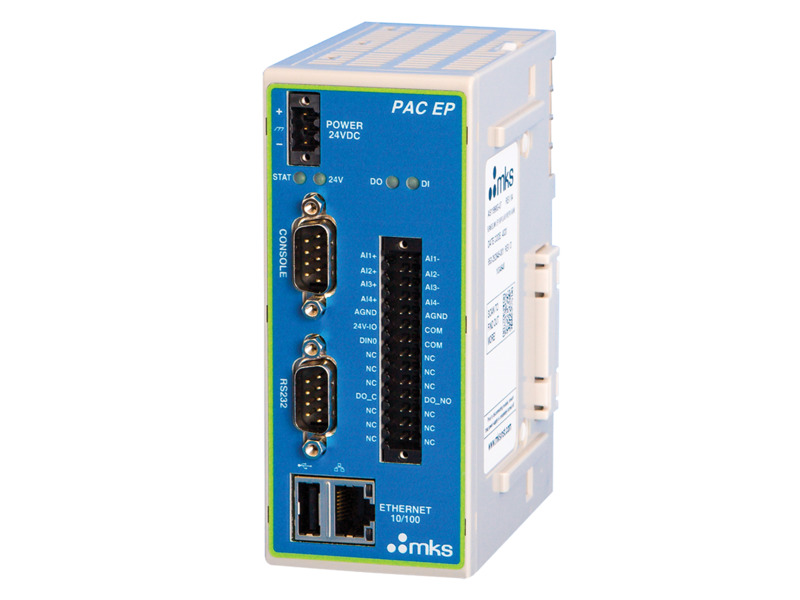

AS11990G-12 Endpoint I/O Monitor w/SenseLink Software |
15 Weeks
|
$2,275.35 |
|
Specifications
-
TypePAC Endpoint I/O
-
Power ConsumptionDevice: 24VDC, ±10%, 0.5A(max), 0.3A(typical)
AIO Power: Internally powered. No external power required. -
ConnectorPower: 3 pin with polarity and locking (mating connector provided)
I/O: D-sub 50 pin female
Network: 10/100BaseT, RJ45 connector -
Digital I/ONumber of DI: 1, Active low, internal pull-up to 24VDC
Max DI Current: 30 mA
Number of DO: 1, Dry contact relay, 1A max -
Analog InputNumber of Inputs: 4 Differential analog inputs
Input Range: 0 to +10V
Resolution: 16-bit
Filtering: 200Hz ±20%, 6dB/octave Min
Impedance: 10 MΩ -
Analog OutputNumber of Outputs: 0
-
CommunicationEthernet
-
Front Panel IndicatorsNetwork: Status LEDs on RJ45
System Status: System Ready(green), 24VDC Health (Green)
Digital Input/Output Points: DO On/Off Status(Green), DI On/Off Status(Green) -
Operating Temperature0-50°C
-
Storage Temperature-40 to 85°C
-
Humidity5-85% non-condensing
-
Dimensions4.921 x 2.066 x 3.633 in. (125 x 52.5 x 92.3 mm)
-
Weight0.661 lb (300 g)
Features
Mounting & Connecting
PAC Endpoint Remote I/O is a Linux based controller with integrated I/O and peripherals. It contains a terminal block connector for I/O connectivity as well as RS232 serial port as an option for interfacing with host PC. In addition, it also features a serial diagnostics port for unit diagnostics. Features a standard DIN rail for mounting. Package size is only 4.921 x 2.066 x 3.633 inches (125 x 52.5 x 92.3 mm).
