Compare Description Drawings, CAD & Specs Availability Price
AS08482G-06
Networked IO, MicroNode, EtherCAT, Combo IO, Digital Sink
$661
15 Weeks
 AS08482G-06 Networked IO, MicroNode, EtherCAT, Combo IO, Digital Sink
15 Weeks
 $661
MicroNode I/O for DeviceNet-based fieldbus networks
AS00124R-08
Networked IO, MicroNode, DeviceNet, Combo IO, Digital Sink, Front Connector
$738
Contact Us
 AS00124R-08 Networked IO, MicroNode, DeviceNet, Combo IO, Digital Sink, Front Connector
Contact Us
 $738
MicroNode I/O for DeviceNet-based fieldbus networks
AS00127R-08
Networked IO, MicroNode, DeviceNet, Combo IO, Digital Source, Front Connector
$870
Contact Us
 AS00127R-08 Networked IO, MicroNode, DeviceNet, Combo IO, Digital Source, Front Connector
Contact Us
 $870

Specifications

  • Type
    Compact Networked I/O
  • Power Requirements
    Minimum for Network and CPU: 24 VDC, 120 mA
    AIO Power: Internal ±15 VDC; 50 mA.
  • Digital I/O
    DIDO: Each point either digital input or output (except for Profibus Combo)
    Inputs: Optocoupler, 1.5 mA minimum, 1.5 msec filtering
    Outputs: Open collector, 200mA maximum/channel
    Max Output Current: 800 mA maximum on DIO 0-7, 800 mA maximum on DIO 8-15
    Isolation: 500V optical isolation between CPU and digital I/O
  • Analog Input
    Inputs: Single-ended analog inputs
    Input Range: Software selectable (0 to 10 V), (-5 to +5 V)
    Resolution: 12-bit; 16-bit (ECAT MicroNode model only)
    Filtering: 16 Hz
    Protection: ±15 V over-voltage protection
    Non-linearity: ±3 bit (0.0732%)
    Offset Error: ±10 mV (0.2%)
    Gain Error: ±0.5%
    Impedance: 10 kOhm minimum at 10 V
  • Analog Output
    Outputs: Single-ended analog outputs
    Output Range: -10 to +10V
    Resolution: 12-bit; 16-bit (ECAT MicroNode model only)
    Output Current: 5 mA/channel into a 2 kOhm load
    Offset Error: ±2 LSB (~5 mV)
    Gain Error: ±0.4%
  • Front Panel Indicators
    Network, Module: DeviceNet bi-color (red/green) status LEDs
    Digital I/O Points: Green status LEDs
    Rotary Switches: Node Address, Baud Rate (DeviceNet only)
  • Operating Temperature
    0 to +55°C
  • Storage Temperature
    -40 - 85°C
  • Humidity
    5 to 95% non-condensing
  • Weight
    0.44 lb (200 g)
    0.661 lb (300 g) ECAT MicroNode model only
  • Dimensions
    3.150 x 4.724 x 1.142 in. (80 x 120 x 29 mm)
    4.921 x 2.066 x 3.633 in. (125 x 52.5 x 92.3 mm) ECAT MicroNode model only

Features

EtherCAT I/O Modules

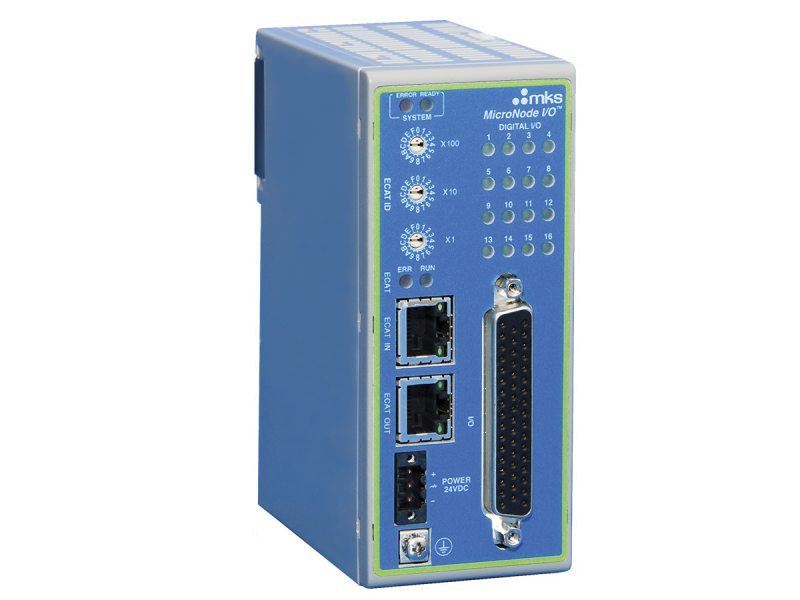

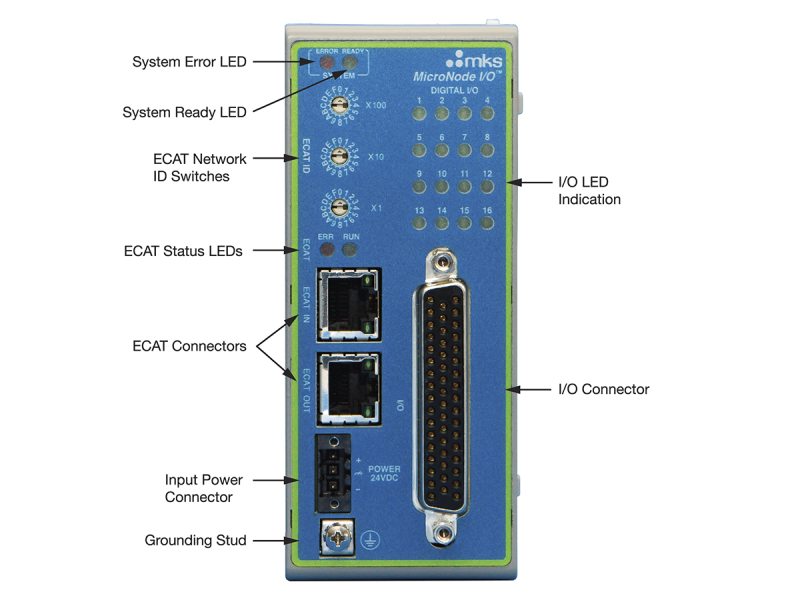

MicroNode™ EtherCAT® Networked Input/Output Controller provides a high density, compact and economical solution for 16 digital inputs/outputs, 8 analog inputs, and 4 analog outputs on the popular EtherCAT network. The 16 digital IO points are sinking, isolated, and can be used as either inputs or outputs. MicroNode™ EtherCAT contains all required object models, connectivity and configuration.

DeviceNet I/O Modules

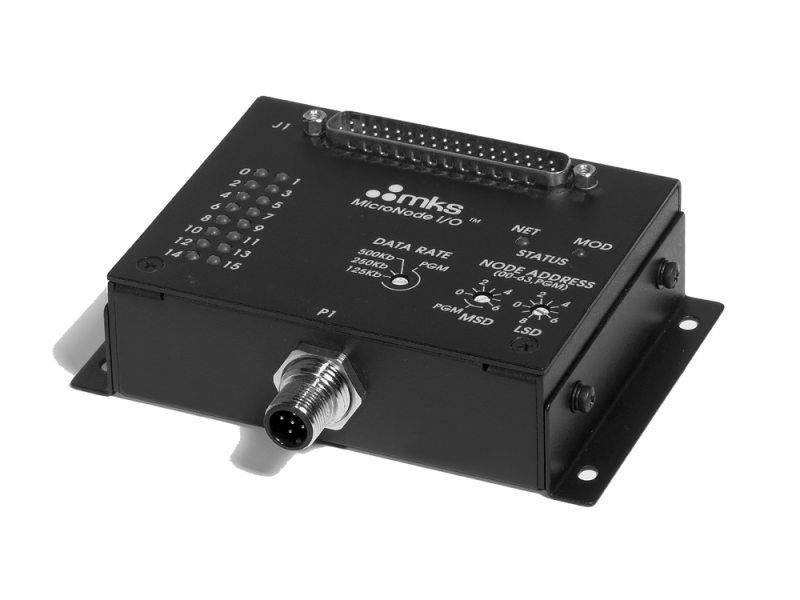

MicroNode DeviceNet is ODVA Semi SIG compliant, implementing all required object models, connectivity and configuration. Supports Explicit Messaging and Polled I/O. Connect using 5 pole microfast type connection, and set MAC ID/Baud rate using rotary switches located on the front panel.

DeviceNet units also have the option of powering the I/O directly from the network bus power, via end user jumper configuration. See the user manual for instructions.

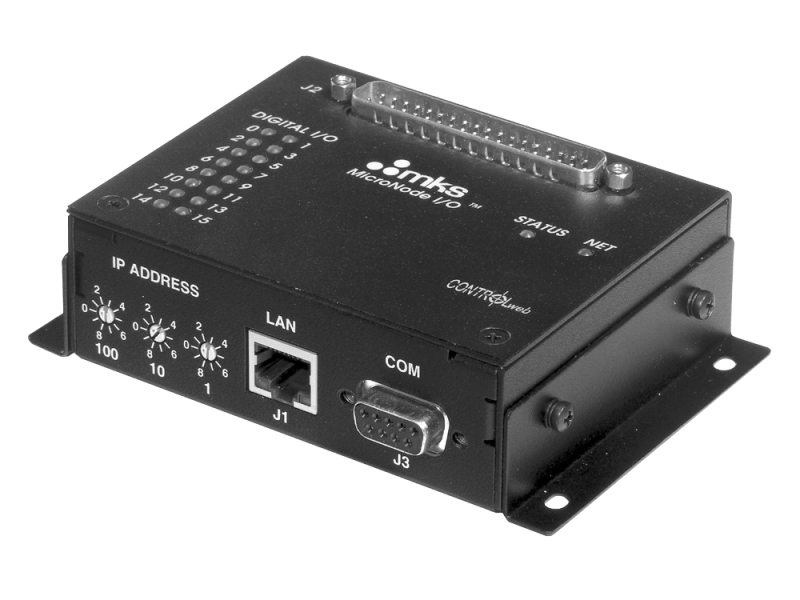

Mounting and Connection

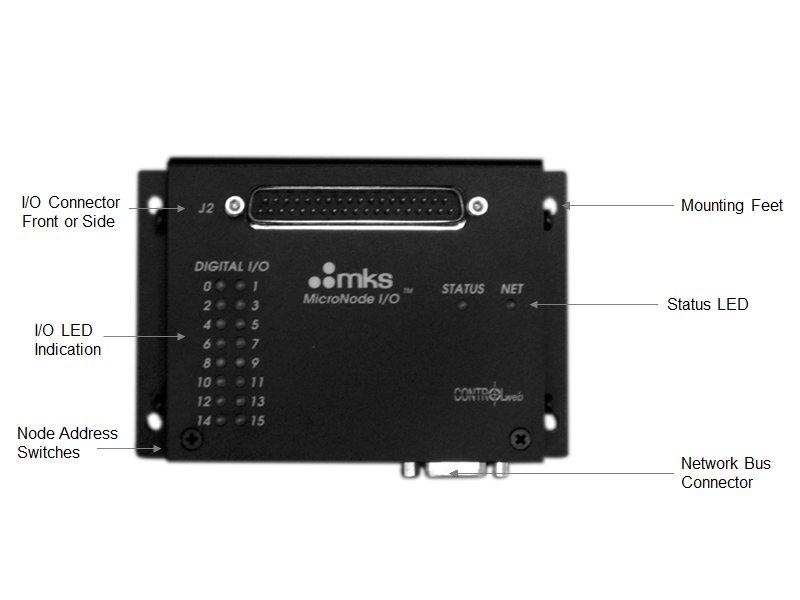

Each MicroNode contains options for I/O connector placement and mounting feet. The D-sub 37 I/O connector is located on the front face or on the side, whichever configuration best meets your requirements. Mounting feet can be located to face front or back. Package size is only 80 x 120 x 29 mm.
