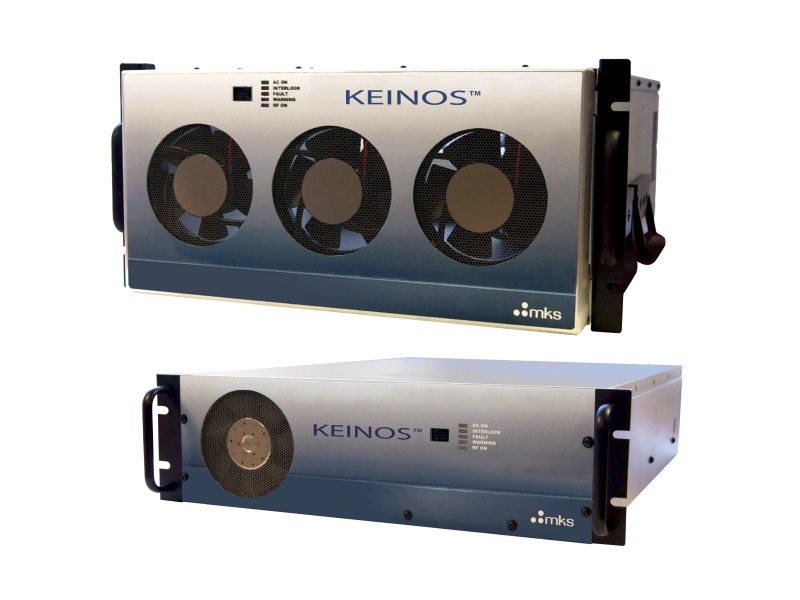

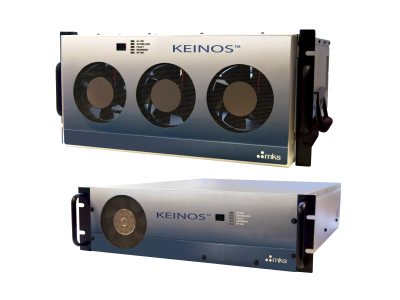

KEINOS™ 2 MHz 5 kW, 11 kW & 13 kW RF Plasma Generators
Overview
The KEINOS™ 2MHz plasma generator builds on the solid, reliable attributes of the existing 2MHz design. KEINOS™ incorporates the latest technology from MKS to enable demanding applications of pulsing, fast impedance changes and shorter process steps. KEINOS™ can deliver up to 13kW of power, pulsing up to 50KHz, multiple set point pulsing, pulse shaping and MKS patented frequency tuning. KEINOS™ uses an integrated VI sensor for power accuracy and digital based control for fast response times.
- Dynamic frequency tuning reduces plasma stabilization time
- On-off, level to level and pulse shaping for maximum process flexibility
- Pulse energy control for process repeatability
- Pulse synchronization for pulse control in multi-frequency applications
- Up to 50 KHz pulse frequency for advanced process requirements
- Forward power accuracy of <±1.0% of set point
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
KEINOS RF Plasma Generator, 5, 11, or 13 kW, 2MHz, KEINOS |
|
Specifications
-
TypeRF Plasma Generator
-
Frequency1.985 MHz
-
Frequency Tuning Range±10%
-
Power Output5kW, 11kW, 13kW
-
Accuracy±5W up to 500W
±1% from 501W to max power -
Load Impedance RangeUnlimited
-
Pulse FrequencyUp to 50KHz
-
Pulse Rise Time<5 µsec
-
Pulse Fall Time<5 µsec
-
Minimum Pulse Width10 µsec
-
Pulse Energy Repeatability<3%
-
Hot Swap or Pulse on the FlyAvailable
-
Pulse Between Two Set PointsAvailable
-
Pulse EnabledVia internal or external TTL trigger, SMA
-
Pulse ModeMaster or slave operation
-
Input AC Power200/208VAC ±10%, 3 Phase, 50/60 Hz
-
Rated Current25 amps max (5kW)
55 amps max (13kW) -
RF ConnectorSQS standard (QC output)
-
InterfaceEthernet, RS232
-
Dimensions5 kW: 5.25 x 17.5 x 24.5 inches
11 kW & 13 kW: 8.30 x 17.8 x 25.5 inches (H x W x D) -
ComplianceCE, SEMI S2, SEMI S7, SEMI S14, SEMI F47, CAN/CSA-C22.2 No. 61010-1
Features

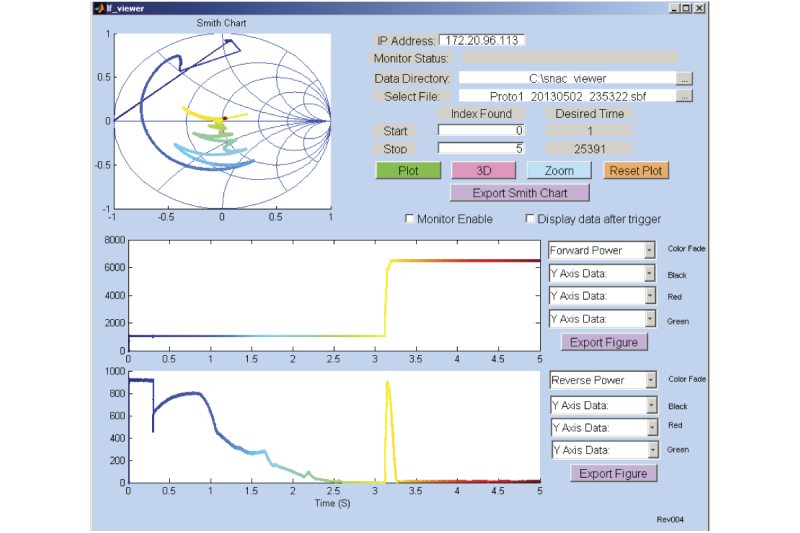

Internal Scope
View of Smith chart and corresponding time sequence
- High speed data collection with large memory buffer
- Real time statistics for field diagnosis
- Integrated high speed scope application to observe internal variables
- Customized presets for rapid customer setups and consistent data mining
- Control via Ethernet

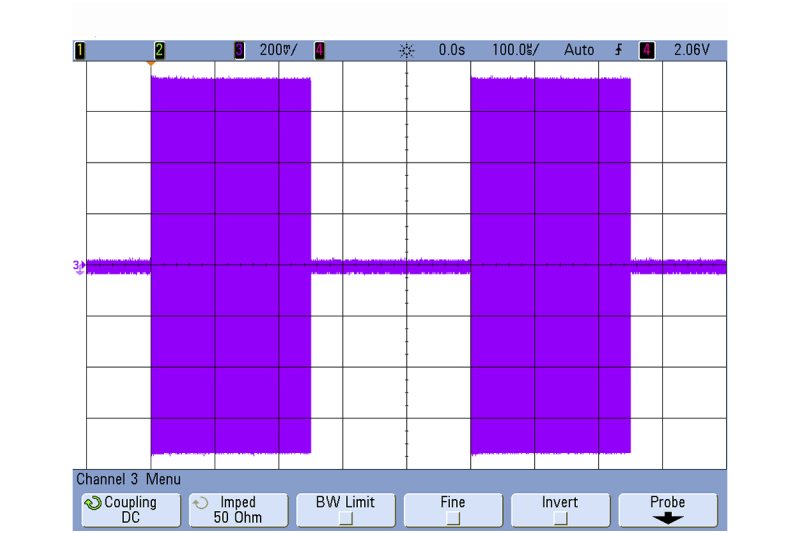

On/Off Pulsing Performance
- Sharp rectangular pulses with zero watts off state
- Used when fast rise times are needed

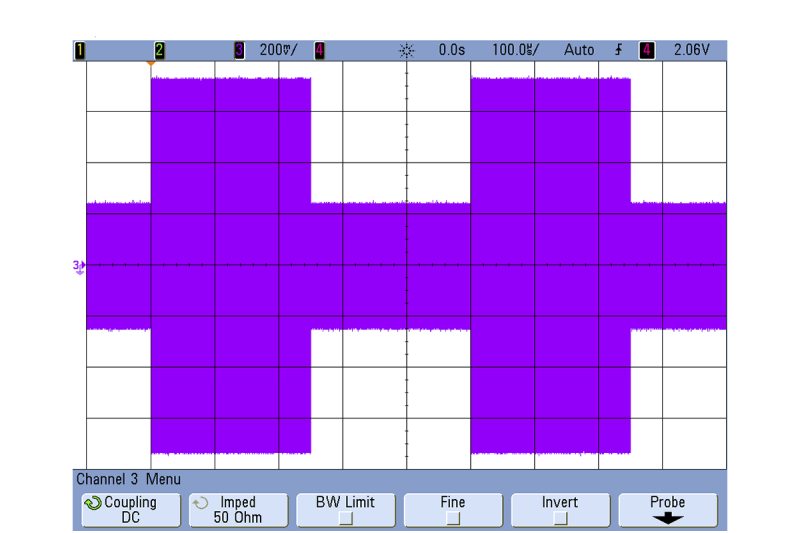

Multiple Level Pulsing Performance
- Sharp rectangular pulses with non zero off state
- Used for minimizing plasma impedance shifts

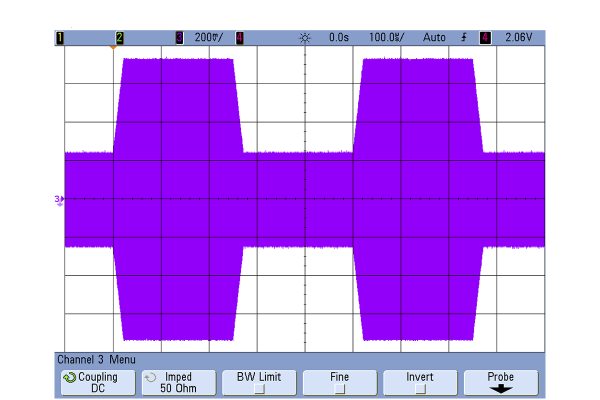

Pulse Shaping Performance
- Controlled ramping or controlled rise and fall time
- Used for reducing pulse overshoot and plasma instabilities
