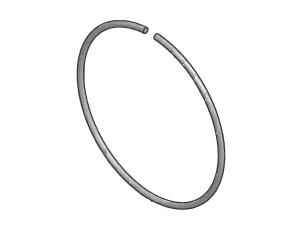

ISO-MF Rotatable Bolt Retaining Rings
Overview
- Retain rotatable bolt rings
- Stainless Steel construction
- NW63 to NW500 flange sizes
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100762906 Retaining Ring, NW63 Size Rotatable Bolt Ring, Stainless Steel |
7 Weeks
|
$72.00 |
|
|||
|
|
100762908 Retaining Ring, NW80 Size Rotatable Bolt Ring, Stainless Steel |
1 Week
|
$41.00 |
|
|||
|
|
100762910 Retaining Ring, NW100 Size Rotatable Bolt Ring, Stainless Steel |
6 Weeks
|
$41.00 |
|
|||
|
|
100762916 Retaining Ring, NW160 Size Rotatable Bolt Ring, Stainless Steel |
7 Weeks
|
$44.00 |
|
|||
|
|
100762920 Retaining Ring, NW200 Size Rotatable Bolt Ring, Stainless Steel |
7 Weeks
|
$90.00 |
|
|||
|
|
100762925 Retaining Ring, NW250 Size Rotatable Bolt Ring, Stainless Steel |
7 Weeks
|
$52.00 |
|
|||
|
|
100762932 Retaining Ring, NW320 Size Rotatable Bolt Ring, Stainless Steel | $64.00 |
|
||||
|
|
100762940 Retaining Ring, NW400 Size Rotatable Bolt Ring, Stainless Steel | $94.00 |
|
||||
|
|
100762950 Retaining Ring, NW500 Size Rotatable Bolt Ring, Stainless Steel | $128.00 |
|
Specifications
-
Component TypeRetaining Ring
-
SeriesSeries 76
-
Flange TypeISO-MF
-
MaterialStainless Steel
Features
Rotatable Bolt Rings
You can join an ISO-BF bolted flange to an ISO-MF an ISO-MF Multi-fastener flange by using a rotatable bolt ring on the ISO-MF flange. In attaching a rotatable bolt ring to an MF flange, the ring is first passed over the flange with the larger bore of the ring facing outward from the open port. The split retaining ring is then snapped into the groove on the periphery of the ISO-MF flange. Then the bolt ring is pulled forward into position. The vacuum flanges are then joined using nuts and bolts.
Resources
Literature
- Series 76 ISO-Universal Vacuum Components & Fittings (2.8 MB, PDF)
