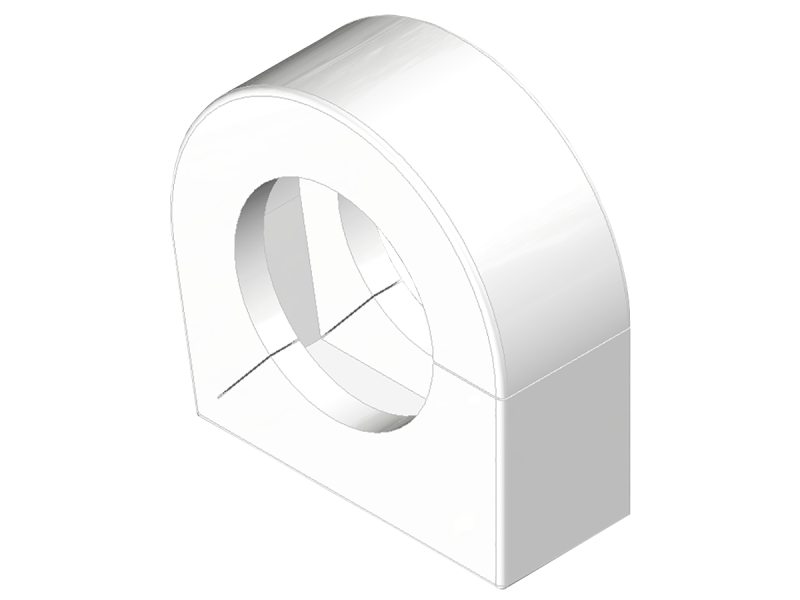

PTFE Flange Insulators for ISO-KF Wing Nut Clamped Flanges
Overview
- For NW40 to NW50 wingnut clamped ISO-KF flanges
- PTFE insulator with Teflon woven shell
- Prevent heat from escaping at flanges
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
501010-0038 Flange Insulator, PTFE-Teflon®, fits NW25 ISO-KF Clamp, 1.0 in. Tubing |
5 Weeks
|
$123.00 |
|
|||
|
|
Flange Insulator, PTFE-Teflon®, fits NW25 ISO-KF Wing Nut Clamp, 1.0 to 1.6 in. Tubing with Clamp
$123.00
6 Weeks
|
501010-0082 Flange Insulator, PTFE-Teflon®, fits NW25 ISO-KF Wing Nut Clamp, 1.0 to 1.6 in. Tubing with Clamp |
6 Weeks
|
$123.00 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW25 ISO-KF Toggle Clamp, 1.0 in. Tubing
$243.00
6 Weeks
|
501010-0803 Flange Insulator, PTFE-Teflon®, fits NW25 ISO-KF Toggle Clamp, 1.0 in. Tubing |
6 Weeks
|
$243.00 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW40 ISO-KF Clamp, 1.5 in. to 1.5 in. Tubing
$199.00
5 Weeks
|
501015-0269 Flange Insulator, PTFE-Teflon®, fits NW40 ISO-KF Clamp, 1.5 in. to 1.5 in. Tubing |
5 Weeks
|
$199.00 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW40 ISO-KF Clamp, 1.5 in. Tubing to Hose or Bellow
$199.00
5 Weeks
|
501015-0270 Flange Insulator, PTFE-Teflon®, fits NW40 ISO-KF Clamp, 1.5 in. Tubing to Hose or Bellow |
5 Weeks
|
$199.00 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW40 ISO-KF Clamp, 1.5 in. Tubing to Hose or Bellow
$175.00
5 Weeks
|
501015-0280 Flange Insulator, PTFE-Teflon®, fits NW40 ISO-KF Clamp, 1.5 in. Tubing to Hose or Bellow |
5 Weeks
|
$175.00 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to 2 in. Tubing
$203.00
5 Weeks
|
501020-0247 Flange Insulator, PTFE-Teflon®, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to 2 in. Tubing |
5 Weeks
|
$203.00 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to Hose or Bellow
$203.00
5 Weeks
|
501020-0248 Flange Insulator, PTFE-Teflon®, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to Hose or Bellow |
5 Weeks
|
$203.00 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to Hose or Bellow
$203.00
6 Weeks
|
501020-0285 Flange Insulator, PTFE-Teflon®, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to Hose or Bellow |
6 Weeks
|
$203.00 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW50 ISO-KF Toggle Clamp, 2.0 in. Tubing
$272.00
6 Weeks
|
501020-0806 Flange Insulator, PTFE-Teflon®, fits NW50 ISO-KF Toggle Clamp, 2.0 in. Tubing |
6 Weeks
|
$272.00 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW50 ISO-KF Toggle Clamp, 2.0 in. Tubing to Hose or Bellow
$272.00
6 Weeks
|
501020-0807 Flange Insulator, PTFE-Teflon®, fits NW50 ISO-KF Toggle Clamp, 2.0 in. Tubing to Hose or Bellow |
6 Weeks
|
$272.00 |
|
Specifications
-
SeriesSeries 49
-
TypeFlange Insulator
-
Insulation MaterialPTFE Teflon-Woven
-
Component TypeWing-Nut Flange Clamp
Resources
Literature
- Series 49UL Thermal Management System (2.4 MB, PDF)
