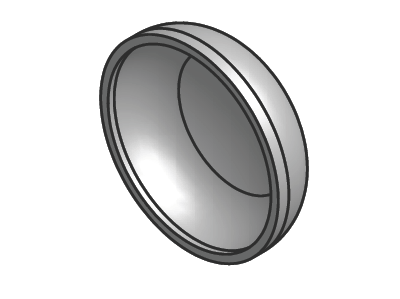

10023C050 End Cap, Buttweld, 0.5 inch Outside Diameter, 304 Stainless Steel |
4 Weeks
|
$16.10 |
|
|||
![]() |
10023C075 End Cap, Buttweld, 0.75 inch Outside Diameter, 304 Stainless Steel |
4 Weeks
|
$26 |
|
|||
![]() |
10023C100 End Cap, Buttweld, 1.0 inch Outside Diameter, 304 Stainless Steel | $20.18 |
|
||||
![]() |
10023C150 End Cap, Buttweld, 1.5 inch Outside Diameter, 304 Stainless Steel | $21.39 |
|
||||
![]() |
10023C200 End Cap, Buttweld, 2.0 inch Outside Diameter, 304 Stainless Steel |
1 Week
|
$22.93 |
|
|||
![]() |
10023C250 End Cap, Buttweld, 2.5 inch Outside Diameter, 304 Stainless Steel |
1 Week
|
$24.15 |
|
|||
![]() |
10023C300 End Cap, Buttweld, 3.0 inch Outside Diameter, 304 Stainless Steel |
1 Week
|
$26 |
|
|||
![]() |
10023C400 End Cap, Buttweld, 4.0 inch Outside Diameter, 304 Stainless Steel | $37 |
|
The Series 23 components are constructed of 304 or 304L welded, drawn, and annealed stainless steel tubing. (316L is available on request.) For most vacuum process applications, this provides the best combination of the following critical features:
Each component is fabricated using pulled port and 100% penetration TIG weld techniques. All welded components are leak free, carefully cleaned for high vacuum use and then packaged to remain clean until the time of installation.
Series 23 fittings are designed to be welded using techniques preferred for vacuum applications. These techniques include internal (socket type) welding and external buttwelding. The most commonly used type of weld for high vacuum applications is a TIG (Tungsten Inert Gas) fusion weld, preferably without filler rod. For the best results, remove components from packaging in clean conditions during installation. Handle the components with clean gloves and equipment in the absence of any fibers, fingerprint oils, or other greases. If these precautions are taken, the weld is more likely to be leak free and the integrity of the vacuum surface will remain intact and ready for use.
General hints for good vacuum welds include:
Vacuum buttweld fittings are designed to be used in any vacuum applications where minimizing the number of sealed joints is critical.
