Alter® SM 445 Air-cooled Switch Mode Microwave Power Supply for 1.25 kW, 2.45 GHz Magnetrons with PC Connectivity
Overview

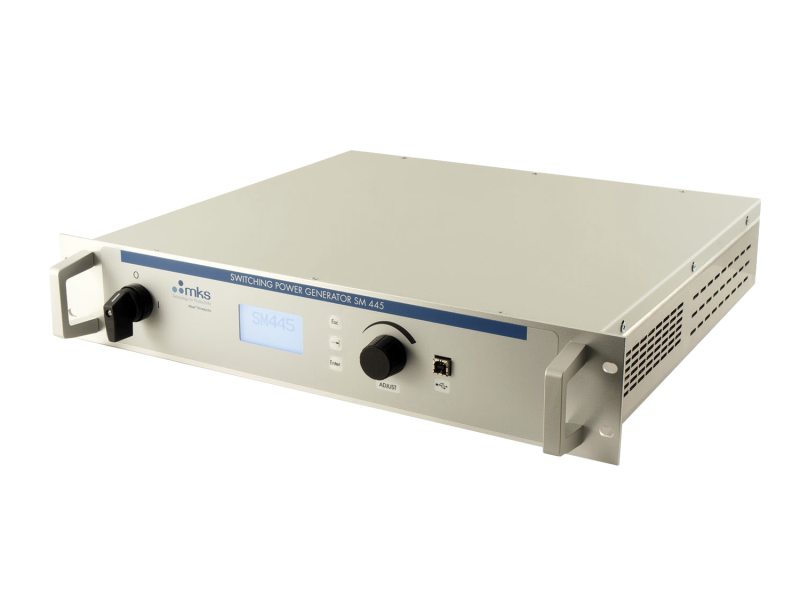

The Alter® SM 445 is an air-cooled power supply for a 1.25 kW magnetron. The SM 445 is able to power and control most types of magnetrons available on the market with nominal power of 1.25 kW @ 2.45 GHz. Depending on the model, the output power can be adjusted continuously, from 10% to 100%, using an external analog signal from 1-10VDC, with a PC via USB port, or by front panel commands.
- Proven, state-of-the-art design with resonant topology that improves efficiency
- Single phase input requirement, at nominal 230 VAC, includes Power Factor Correction (PFC) stage
- Low output ripple, suitable for most applications, and stable filament control result in long magnetron life
- Very low harmonics and inrush current from efficient power stage design
- "Plug & Play" - when installed with Alter® cable set the user supplies only 2 signals
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
SM-445 Microwave Power Supply, Switch Mode, 1.25 kW, 2.45 GHz Magnetron |
|
Specifications
-
TypeSM 445 Switch Mode Microwave Power Supply
-
Power Output2000 W max
-
Input Voltage230 VAC +10%/-15%
-
Line Frequency50/60 Hz
-
Efficiency92%
-
Output Current475 mA max
-
Alarm ManagementOpening alarm contact, emission of a 4 bit alarm code, the alarm is latched and requires a reset procedure
-
DimensionsWidth, Rack 445 mm (17.52 inches)
Width, Front Panel 483 mm (19.02 inches)
Height, Rack 88.5 mm (2U, 3.48 inches)
Length, Rack 420 mm (16.54 inches) -
Weight14kg (31 lbs)
-
CoolingForced air, approx 100 m3/h
-
Ambient Operating Temperature40° C (104° F) maximum
-
ComplianceCE
-
Preferred Microwave Magnetron HeadMKS, Alter TM012, TMA12, or TI012
