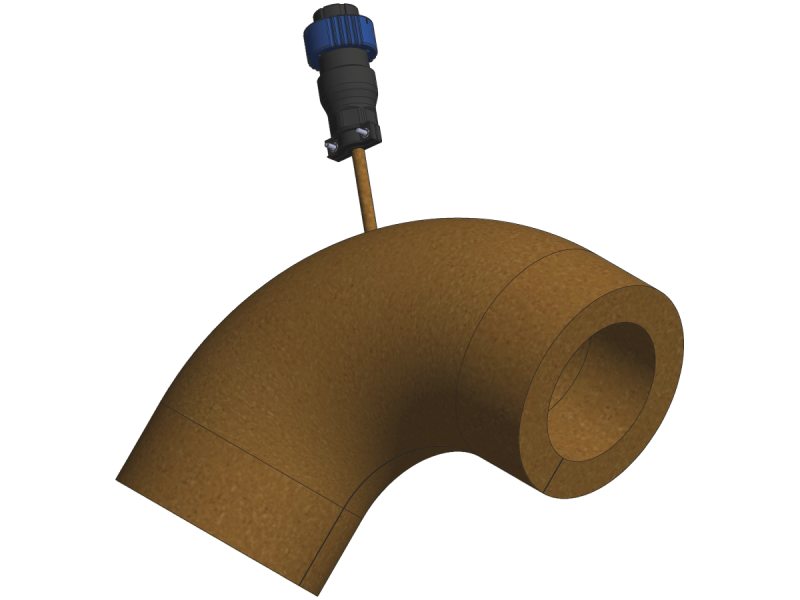

120 VAC Polyimide 90 Degree Elbow Heater Jackets
Overview
- Compatible with ISO and Buttweld 90 elbows
- Polyimide materials for heater and insulation
- 100-120 VAC power requirement
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 1.5 in. Diameter Tubing, 120V
$824
5 Weeks
|
495015161-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 1.5 in. Diameter Tubing, 120V |
5 Weeks
|
$824 |
|
||
|
Heater Jacket, Polyimide, fits ISO 90 Degree Long Elbow, 1.5 in. Tubing, 120V
$880
5 Weeks
|
495015163-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Long Elbow, 1.5 in. Tubing, 120V |
5 Weeks
|
$880 |
|
||
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 1.5 in. Diameter Tubing, 120V
$708
5 Weeks
|
495015166-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 1.5 in. Diameter Tubing, 120V |
5 Weeks
|
$708 |
|
||
|
Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 1.5 in. Tubing, 120V
$852
5 Weeks
|
495015167-1150 Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 1.5 in. Tubing, 120V |
5 Weeks
|
$852 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 1.5 in. Tubing, 120V
$684
5 Weeks
|
495015168-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 1.5 in. Tubing, 120V |
5 Weeks
|
$684 |
|
||
|
Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 1.7 in. Diameter Tubing, 120V
$847
5 Weeks
|
495017161-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 1.7 in. Diameter Tubing, 120V |
5 Weeks
|
$847 |
|
||
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 1.7 in. Diameter Tubing, 120V
$725
5 Weeks
|
495017166-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 1.7 in. Diameter Tubing, 120V |
5 Weeks
|
$725 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 1.9 in. Diameter Tubing, 120V
$748
5 Weeks
|
495019166-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 1.9 in. Diameter Tubing, 120V |
5 Weeks
|
$748 |
|
||
|
|
Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 2 in. Diameter Tubing, 120V
$893
5 Weeks
|
495020161-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 2 in. Diameter Tubing, 120V |
5 Weeks
|
$893 |
|
||
|
Heater Jacket, Polyimide, fits ISO 90 Degree Long Elbow, 2 in. Tubing, 120V
$991
5 Weeks
|
495020163-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Long Elbow, 2 in. Tubing, 120V |
5 Weeks
|
$991 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 2 in. Diameter Tubing, 120V
$760
5 Weeks
|
495020166-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 2 in. Diameter Tubing, 120V |
5 Weeks
|
$760 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 2 in. Tubing, 120V
$927
5 Weeks
|
495020167-1150 Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 2 in. Tubing, 120V |
5 Weeks
|
$927 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 2.0 in. Tubing, 120V
$737
5 Weeks
|
495020168-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 2.0 in. Tubing, 120V |
5 Weeks
|
$737 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 2.4 in. Diameter Tubing, 120V
$783
5 Weeks
|
495024166-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 2.4 in. Diameter Tubing, 120V |
5 Weeks
|
$783 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 2.4 in. Tubing, 120V
$760
5 Weeks
|
495024168-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 2.4 in. Tubing, 120V |
5 Weeks
|
$760 |
|
||
|
|
Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 2.5 in. Diameter Tubing, 120V
$788
5 Weeks
|
495025163-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 2.5 in. Diameter Tubing, 120V |
5 Weeks
|
$788 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 2.5 in. Diameter Tubing, 120V
$788
5 Weeks
|
495025166-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 2.5 in. Diameter Tubing, 120V |
5 Weeks
|
$788 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 2.5 in. Tubing, 120V
$760
5 Weeks
|
495025168-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 2.5 in. Tubing, 120V |
5 Weeks
|
$760 |
|
||
|
|
Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 3 in. Diameter Tubing, 120V
$842
5 Weeks
|
495030163-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 3 in. Diameter Tubing, 120V |
5 Weeks
|
$842 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3 in. Diameter Tubing, 120V
$842
5 Weeks
|
495030166-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3 in. Diameter Tubing, 120V |
5 Weeks
|
$842 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 3 in. Tubing, 120V
$1,037
5 Weeks
|
495030167-1150 Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 3 in. Tubing, 120V |
5 Weeks
|
$1,037 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 3.0 in. Tubing, 120V
$818
5 Weeks
|
495030168-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 3.0 in. Tubing, 120V |
5 Weeks
|
$818 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3.5 in. Diameter Piping, 120V
$962
5 Weeks
|
495035161-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3.5 in. Diameter Piping, 120V |
5 Weeks
|
$962 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3.5 in. Diameter Piping, 120V
$1,026
5 Weeks
|
495035166-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3.5 in. Diameter Piping, 120V |
5 Weeks
|
$1,026 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 3.5 in. Piping, 120V
$927
5 Weeks
|
495035168-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 3.5 in. Piping, 120V |
5 Weeks
|
$927 |
|
||
|
|
Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 4 in. Diameter Tubing, 120V
$1,078
5 Weeks
|
495040163-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 4 in. Diameter Tubing, 120V |
5 Weeks
|
$1,078 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 4 in. Diameter Tubing, 120V
$1,078
5 Weeks
|
495040166-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 4 in. Diameter Tubing, 120V |
5 Weeks
|
$1,078 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 4 in. Tubing, 120V
$1,338
5 Weeks
|
495040167-2150 Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 4 in. Tubing, 120V |
5 Weeks
|
$1,338 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 4.0 in. Tubing, 120V
$1,037
5 Weeks
|
495040168-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 4.0 in. Tubing, 120V |
5 Weeks
|
$1,037 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 4.5 in. Diameter Piping, 120V
$1,200
5 Weeks
|
495045161-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 4.5 in. Diameter Piping, 120V |
5 Weeks
|
$1,200 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 4.5 in. Diameter Piping, 120V
$1,257
5 Weeks
|
495045166-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 4.5 in. Diameter Piping, 120V |
5 Weeks
|
$1,257 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 4.5 in. Piping, 120V
$1,142
5 Weeks
|
495045168-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 4.5 in. Piping, 120V |
5 Weeks
|
$1,142 |
|
Specifications
-
SeriesSeries 49
-
TypeHeater Jacket
-
Insulation MaterialPolyimide
-
Component Type90° Elbow
-
Temperature Range35 - 200°C
-
Pre-Set Temperature150°C Standard
-
Voltage Requirements100-120 VAC
-
Heater ConnectorsCircular 6 Contact Locking Bayonet
-
Housing MaterialsController: Injection Molded
-
Controller DimensionsØ2.2 in. x 3.7 in.
-
Operating Temperature0° to 60°C
-
ComplianceCE, SEMI S2
Features
Polyimide Heater Material
S49UL products employ cutting edge materials technology to provide superior performance utilizing polyimide materials for both the insulation and jacketing. The heaters can be used in all critical applications where minimal outgassing, ultra-low particle generation, elevated temperatures (up to 225°C), and ease of installation are required. These patented heaters are constructed with fully squared ends and a form fit shape to maximize thermal efficiency and temperature uniformity, minimizing thermal losses and power consumption. Polyimide heaters enable lower cost heating compared to other solutions.
Significant Energy Savings
S49UL Thermal Management Systems provide greater energy savings and efficiency over competitive heater products. The new thermally efficient advanced Polyimide and PTFE materials used in the heater jacket construction provide superior insulation.
The system also offers a Standby Mode which can be used during preventative maintenance cycles, allowing for a reduction in energy consumption while minimizing heat-up and restart time.
This chart the energy use of the S49UL system to other heater solutions. Preventative maintenance cycles combined with our advanced materials resulted in 35% less power usage compared to other common heater products.
Series 49 Heaters can provide over 36% energy savings vs. competitive heater products.
Series 49 Controller Technology
The Series 49UL controller uses custom interconnects that allow the controller to be disconnected from the heater jacket. This feature provides flexibility in system configuration and simplifies maintenance and replacement.
The Series 49UL controller can be configured and customized using the optional Tablet Application. The user interface application is the gateway to a comprehensive thermal management control system providing access to temperature limits, setpoints, data and network alerts.
For user-provided communications systems, the S49UL controller is RS485 Modbus RTU ready. The S49UL User Manual provides details on communications access, register definitions, and control configuration.
The Series 49 controller module features fully adjustable control parameters and 360° view of status indicators.
Series 49 Controller Technology
The Series 49UL controller uses custom interconnects that allow the controller to be disconnected from the heater jacket. This feature provides flexibility in system configuration and simplifies maintenance and replacement.
The Series 49UL controller can be configured and customized using the optional Tablet Application. The user interface application is the gateway to a comprehensive thermal management control system providing access to temperature limits, setpoints, data and network alerts.
For user-provided communications systems, the S49UL controller is RS485 Modbus RTU ready. The S49UL User Manual provides details on communications access, register definitions, and control configuration.
The Series 49 controller module features fully adjustable control parameters and 360° view of status indicators.
Advanced Digital Communications
The S49UL User Interface System enables an integrated remote communications and diagnostics solution for the S49UL Thermal Management System. The user-friendly system allows quick and easy set up and operation with a downloadable Android-based tablet software application.
Multi-node Screen: View all nodes on the network and their current temperature and status.
User Interface System
Connecting to the heater network the user interface initiates an auto-addressing sequence which automatically sets the address of the heater controllers on the network. The S49UL software provides access to all functions of the S49UL heater control system. The application provides intuitive system control set up, monitoring, diagnostics, and parameter adjustments, creating a user-friendly experience.
The User Interface allows direct access to variables such as temperature set points, upper and lower temperature threshold alarms, and error conditions. For more advanced users, the system offers password protected access to detailed control and safety parameter settings.
Single-node Screen: Provides general status and any alerts or errors for a particular heater and is used to adjust set point and temperature alert parameters.
Data Plot Screen
data plot screen on the Series 49UL User Interface
The data plot screen on the Series 49UL User Interface enables plotting selected heaters with adjustable timescale.
Heater Jacket Applications
Semiconductor
- ETCH
- Prevent solidification of aluminum chloride (AlCl3) in an aluminum etching system
- CVD, PECVD, MOCVD, LPCVD (Nitride and TEOS)
- Prevent solidification of ammonium chloride (NH4Cl) in a silicon nitride LPCVD system
- Reduce solid buildup in other semiconductor processes, such as titanium nitride, tungsten, and TEOS CVD
- EPI (Epitaxy)
- ALD
- Gauge Trees
- Maintain uniform temperature environments in complex shapes
- Gas Analyzers, Endpoint Detectors, Bubbler Cylinders, Mass Flow Controllers, Manometers, Isolation and Butterfly Valves
Analytical Instrumentation
- Mass Spectrometers
- Evaporators
- Chambers
Industrial Coating
- Solar Substrate Processing
- Thin Films
- LED Manufacturing
Custom and R&D Applications
- Heaters for custom and R&D applications can be engineered to meet specific requirements
