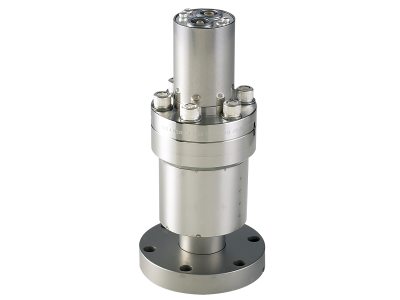

422 Cold Cathode Vacuum/Pressure Sensor
Overview
The internal design of the 422 Cold Cathode Vacuum/Pressure Sensor has been carefully constructed using only materials suitable for UHV conditions. Combined with Inverted Magnetron technology, this sensor has the capability of measuring down to 1 x 10-11 Torr. The 422 Cold Cathode Sensor incorporates LEMO® connectors, these connectors use PEEK for the insulators which allows a sensor to be both bakeable and radiation resistant. Maximum bakeout temperature is 250°C while operating. In addition, MKS offers cables that are bakeable and radiation resistant (no Teflon).
The 422 sensor is ideally suited for High Energy Physics applications.
- Pressure measurement from 10-2 to 10-11 Torr
- Bakeable to 250°C while operating
- Radiation resistant
Products
Specifications
-
Sensor TypeCold Cathode
-
Measurement Range1.0 x 10-11 to 1.0 x 10-2 Torr
1.3 x 10-11 to 1.3 x 10-2 mbar
1.3 x 10-9 to 1.3 Pascal -
Fitting TypeConflat
-
Flange Size2.75 inch CF
-
Set Point Range2.0 x 10-10 to 9.5 x 10-3 Torr
2.7 x 10-10 to 1.2 x 10-2 mbar
2.7 x 10-8 to 1.2 Pascal -
Resolution1% of indicated decade, except 10% below 10-10 Torr and above 10-3 Torr
-
ConnectorsLEMO
-
Reproducibility5% of indicated pressure
-
Exposed MaterialsStainless steel, silver-copper brazing alloy, alumina ceramics, aluminum AL 6061, Elgiloy®, OFHC® copper
-
Bake Out Temperature0-250°C (32-482°F)
-
Operating Temperature0-250°C (32-482°F)
-
ConnectorLEMO
-
Internal Volume1.8 in3 (30 cm3) max
-
Weight2.9 lbs. (1.3 Kg) with CF Flange
-
Set Point Response120 ms (<10ms with CL card)
