358 micro-ion vacuum gauge controller
$2,284
none none mbar North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$2,284
none none Torr North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$2,284
none none Torr North America 240 VAC
358 micro-ion vacuum gauge controller
$2,284
none none Torr Universal Europe 220 VAC
358 micro-ion vacuum gauge controller
$2,284
none none Torr United Kingdom 240 VAC
358 micro-ion vacuum gauge controller
$2,699
2 set point relays for Micro-Ion Gauge none Torr North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$2,888
6 set point relays, 2 per channel none Torr North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$2,190
none RS232 Torr North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$2,856
none RS232 Pa North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$2,856
none RS232 Torr North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$3,266
2 set point relays for Micro-Ion Gauge RS232 Torr North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$3,460
6 set point relays, 2 per channel RS232 Torr North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$2,190
none RS485/422 Torr North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$2,856
none RS485/422 Torr North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$3,266
2 set point relays for Micro-Ion Gauge RS485/422 mbar North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$3,266
2 set point relays for Micro-Ion Gauge RS485/422 Torr North America and Japan 115 VAC
358 micro-ion vacuum gauge controller
$3,460
6 set point relays, 2 per channel RS485/422 Torr North America and Japan 115 VAC

Specifications

  • Measurement Range
    Torr: 5x10-10 to 5x10-2 (to 1000 Torr with Convectron option)
    mbar: 6x10-10 to 7x10-2 (to 1300 mbar with Convectron option)
    Pa: 6x10-8 to 7 (to 130 kPa with Convectron option)
    (for air and N2)
  • Display
    2 digits plus exponent, green LED
  • Display Update Rate
    Every 0.5 sec
  • Power Requirements
    100 to 240 Vac, 50 to 60 Hz, 50 W max
  • Communication Protocol
    RS-232 or RS-485/422
  • Analog Output
    Micro-Ion: 1 Volt/decade, logarithmic, 0 to 10 V
  • Set Point Contact Rating
    5 A at 30 Vdc, 5 A at 120 Vac, 4 A at 240 Vac, resistive load
  • Set Point Configuration
    Single-pole, double-throw (SPDT) relays
  • Emission Current
    0.02, 1 or 4 mA, switch selectable
  • Degas
    Electron bombardment, 4 W with 2-minute timer
  • Operating Temperature
    0° to 40°C
  • Storage Temperature
    -40° to 70°C
  • Case Materials
    Aluminum extrusion
  • Filament Selections
    Filament 1, filament 2 or both, switch selectable
  • Overpressure Protection
    Ion gauge turns off at factory set upper pressure limit
  • Remote Input Signals
    Gauge on/off and degas on/off, selected by momentary continuity to ground
  • Remote Output Signals
    Gauge status indicated by a single-pole, double-throw relay rated at 1 A @ 30 VDC resistive, AC non-inductive
  • Connector
    9-pin subminiature-D male
  • Weight
    1.8 kg (4 lbs)

Features

This reliable controller is compact and easy to use. The extruded aluminum, half-rack design fits easily into your control rack. Infrequently used controls are located behind the front panel door to provide an uncluttered appearance. Large, bright green, flicker-free LED digital displays make measurements easy to read - even from a distance.

The Series 358 controller can be configured to meet your specific system requirements. Up to 6 set point relays can be used to control a variety of system functions such as switching valves, setting interlocks, and setting alarms. Integration into computer-controlled systems is also possible through the use of RS-232 or RS-485/422 interface options.

  • Optimized Micro-Ion Gauge Performance: The controller is designed specifically to obtain optimum performance from a Micro-Ion Gauge. With the proper emission current settings, Micro-Ion Gauges can be operated from 5x10-10 to 5x10-2 Torr.
  • Convenient, Option-Rich, Half-Rack Controller: Halfrack design saves space in your control rack. The controller can be configured to your requirements with numerous optional features, including dual Convectron Gauge readout, process set point relays, and digital interfaces. The extruded aluminum case provides a high level of immunity to electrical noise and is fully CE compliant.
  • 3-Line Digital Display: Bright, easy-to-read, flicker-free, green LED displays allow the user to monitor all three pressure readings at a single glance.
  • Dual Convectron Option: Provides accurate and reliable vacuum pressure measurements from 10-4 Torr (10-4 mbar, 10-2 Pa) to atmosphere at two locations on your vacuum system. The Convectron Gauge reading can be used to automatically turn on the Micro-Ion Gauge.
  • Improved Economy: The modular design enables users to purchase only the required capabilities without paying for features that they do not want or need. Fieldreplaceable option boards allow for easy upgrading as needs change.
  • Process Control Options: Up to six process control set point relays are available to control other vacuum equipment and provide safety interlocking. These digitally controlled relays are stable and easy to adjust. A manual override capability helps with system set-up and maintenance.
  • Computer Interface Options: A RS-232 or RS-485/422 interface allows easy integration with computer-controlled systems.
  • Universal Power Supply: Works with any AC supply voltage between 90 and 240 Volts.

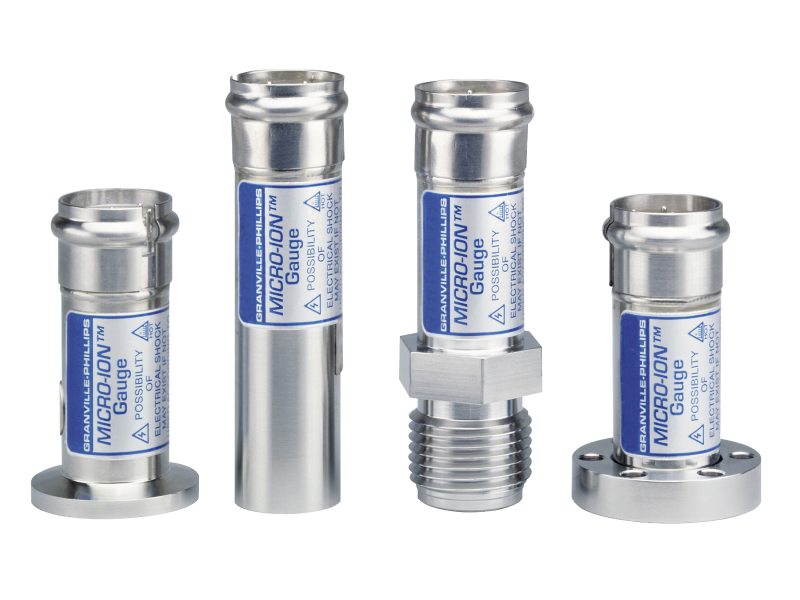

Series 355 Micro-Ion® Gauges

The 355 Micro-Ion® Gauge is the world’s smallest ionization gauge where pressure measurement is based on the amount of ion current that is generated when energized electrons collide with gas molecules in the gauge. High performance in a small volume is achieved through a number of enhancements including its patented dual ion collector design that optimizes electron motion and ion collection. Dual filaments provide extended lifetime by running both filaments simultaneously at a lower current, and avoid unscheduled downtime by using the second filament as a backup. Ultra-clean construction, including vacuum firing of all components and assembly in a Class 100 cleanroom environment ensures rapid, repeatable response during vacuum chamber pumpdown.
