Sorry, this family of products is no longer available. For recommended replacements see mass-flow-controllers.

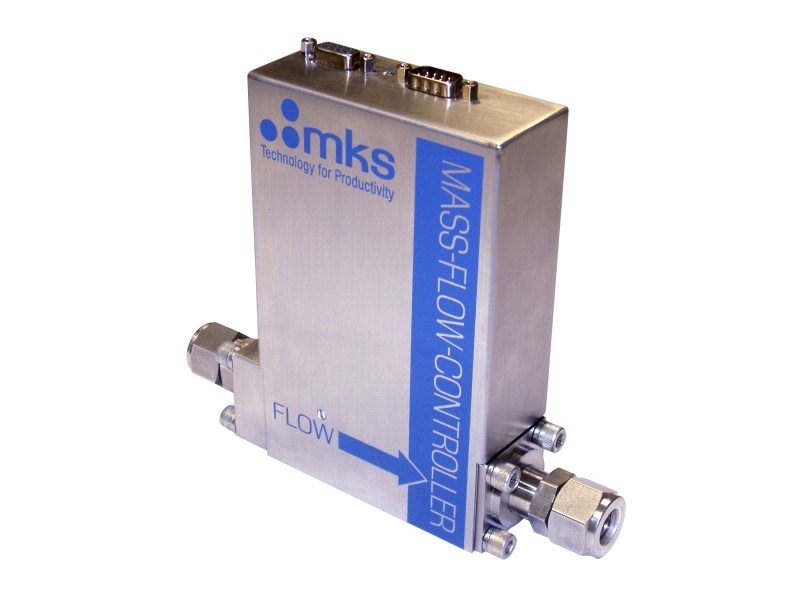

General Purpose, Elastomer-sealed 50 to 300 slm Mass Flow Controller
Overview
The 1579A is a digital mass flow controller developed for a multitude of applications in research and industry. The 1579 is based on proven MKS technology and offers a fast controller settling time as well as high accuracy in the entire control range. For example, this makes it possible to integrate the 1579 into fast cycle processes in which the idle time for the stabilization of the process conditions has to be minimal and reproducible.
Specifications
-
Control Range2 to 100% of Full Scale
-
Full Scale Flow Range50, 100, 200, 300 slm (N2 in slm)
-
Fitting TypeStandard: 8 VCR® male
-
Analog I/O Connector15-pin Type "D" male
-
Seal MaterialBuna-N, Neoprene®, Kalrez®
-
Maximum Inlet Pressure100 psig
-
Normal Operating Pressure Differential15 to 60 psid (50, 100 slm)
25 to 60 psid (200 slm)
40 to 60 psid (300 slm) -
Typical AccuracyStandard: ±1% of Full Scale
-
Repeatability± 0.2% of Full Scale
-
Resolution16 Bit
-
Zero Temperature Coefficient<0.05% of Full Scale /°C
-
Span Temperature Coefficient<0.10% of Full Scale /°C
-
Pressure Coefficient± 0.02% of Reading/psi
-
Warm-up Time30 minutes
-
Typical Settling Time<1 sec
-
Operating Temperature15° to 40°C
-
Power Requirements20.5 to 30 VDC, 300 mA
-
Set Point Command Signal0 to 5 VDC from < 20 kΩ
-
Profibus Connector2 x 9-pin Type "D" male (analog) and female (Profibus)
-
Wetted Materials316L S.S.T, Nickel, Viton®
-
External Leak Integrity<1 x 10-9 scc/sec He
-
Leak Integrity Through Closed Valve<0.1% of Full Scale
-
ComplianceCE
Resources
Drawings & CADs
- 1579 Mass Flow Controller 3D Model Files
- 1579 Mass Flow Controller and 579 Mass Flow Meter Dimensional Drawing (60.2 kB, PDF)
