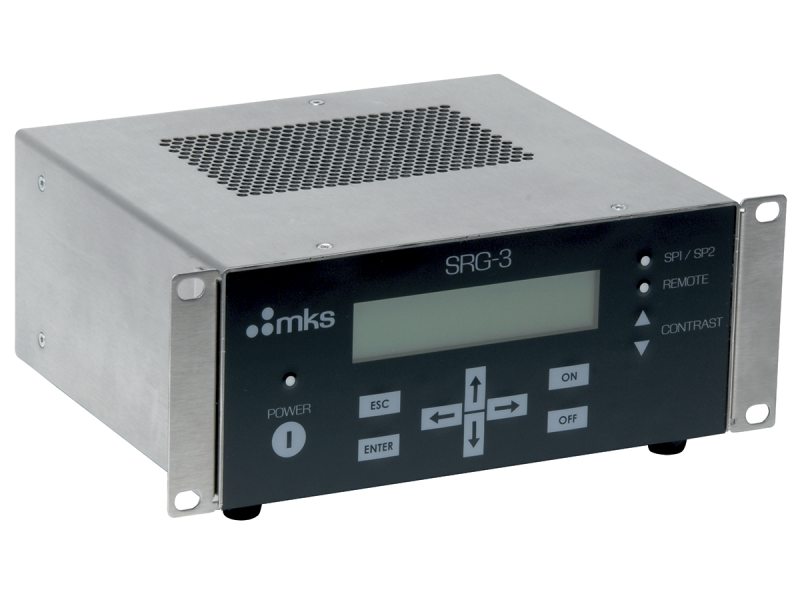

Electronics Module, Spinning Rotor Gauge
Model: SRG3-EL
Electronics Module, Spinning Rotor Gauge
Electronics Module, Spinning Rotor Gauge
Model: SRG3-EL
Overview
Overview
The SRG-3CE Spinning Rotor Gauge (SRG) electronics unit includes both RS232 and USB computer interfaces, as well as two (2) electromechanical trip relays and a high-resolution analog output signal.
Technical Specs
-
Measurement Range5 x 10-5 to 100 Pa
-
Accuracyup to 1 Pa: 1% of measuring value + U 1 to 100 Pa: increasing up to 10% of measured value (typical)
-
StabilityBetter than 1% per year
-
Display4½ digit LCD display
-
Display UnitsPa, mbar, or Torr
-
Analog Output0-10 VDC, into 2kΩ min. load, linear or logarithmic
-
Relays2 SPDT relays, adjustable, nominal switching capacity (resitive load): 1A 30VDC, 0.5A 25VAC
-
Digital CommunicationRS-232, USB (USB 2.0 compatible)
-
Operating TemperatureElectronics: 10-40°C
-
EnclosureHalf 19-inch rack mount or table top, 241 x 185 x 88 mm
-
WeightElectronics: 2.5 kg
-
Power Requirements85 to 256 VAC, 47-63 Hz
-
ComplianceCE
