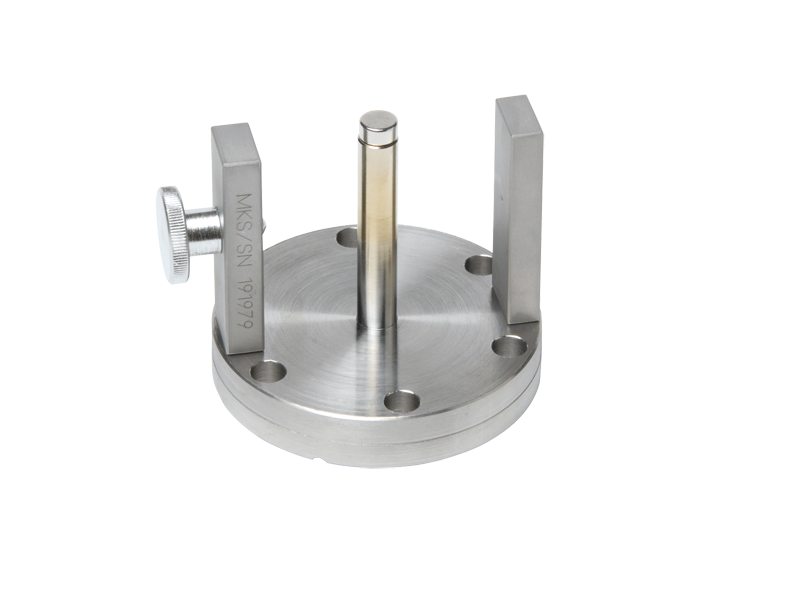

Ball and Flange Assembly, Spinning Rotor Vacuum Gauge System, Calibrated

Technical Specs

  • Measurement Range
    5 x 10-5 to 100 Pa
  • Accuracy
    up to 1 Pa: 1% of measuring value + U 1 to 100 Pa: increasing up to 10% of measured value (typical)
  • Stability
    Better than 1% per year
  • Flange Type
    2¾ CF, made of stainless steel, bakeable up to 450°C (without measuring head)
  • Operating Temperature
    Measuring head: 10-50°C
    Ball/flange assembly bakeable to 450°C
  • Weight
    Measuring head: 0.6 kg
    Measuring flange: 0.5 kg
  • Wetted Materials
    Ball and Flange
  • Compliance
    CE
