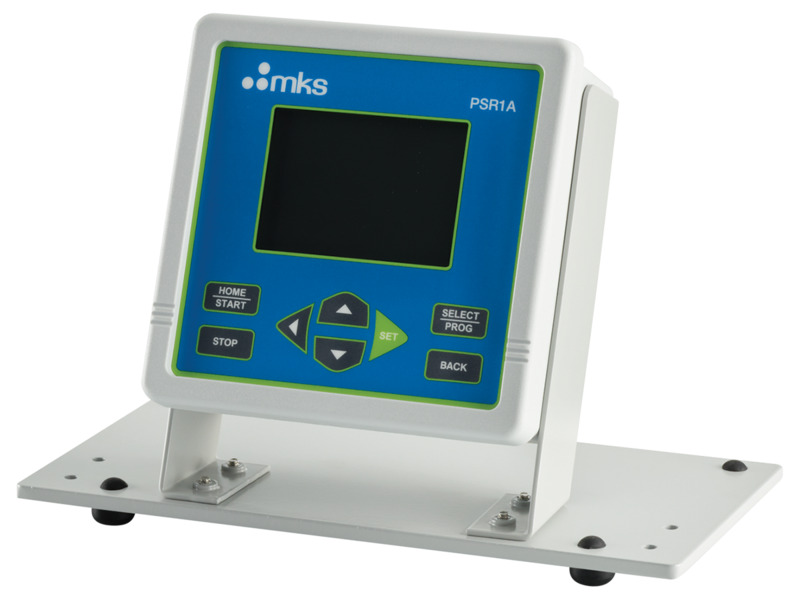

Single Channel Power Supply, Readout and Set Point Controller w/JP Power Cable
Model: PSR1A-JP
Single Channel Power Supply, Readout and Set Point Controller w/JP Power Cable
Single Channel Power Supply, Readout and Set Point Controller w/JP Power Cable
Model: PSR1A-JP
Overview
Overview
The PSR1A-JP is a single channel, digital power supply, display and controller with a power connector compatible with Japan. This single channel version can control one mass flow controller (MFC) or mass flow meter (MFM). The PSR1A-EU can operate either ±15 VDC MFC/MFMs or singlesided 15 VDC.
Technical Specs
-
TypeSingle Channel MFC/MFM Power Supply, Readout and Set Point Controller
-
DisplayGraphic backlit LCD
-
ChannelsOne
-
Signal OutputAnalog output with 16-bit resolution
-
Power Requirements85-264 VAC, 47-63 Hz
-
Operating Temperature0-40°C
-
ConnectorJapanese power connector
-
Set Point Relays1 relay/channel with 2 alarms
-
Weight0.76 lbs
-
ComplianceCE, UKCA
Resources & Downloads
Drawings & CADs
- PSR1A Dimensional Drawing (519.1 kB, PDF)
