Recipe 152, Gas Analyzer, Tunable Filter Spectroscopy, Liquid Natural Gas
Model: PRECISIVE-5-152
Recipe 152, Gas Analyzer, Tunable Filter Spectroscopy, Liquid Natural Gas
Recipe 152, Gas Analyzer, Tunable Filter Spectroscopy, Liquid Natural Gas
Model: PRECISIVE-5-152
Overview
Overview

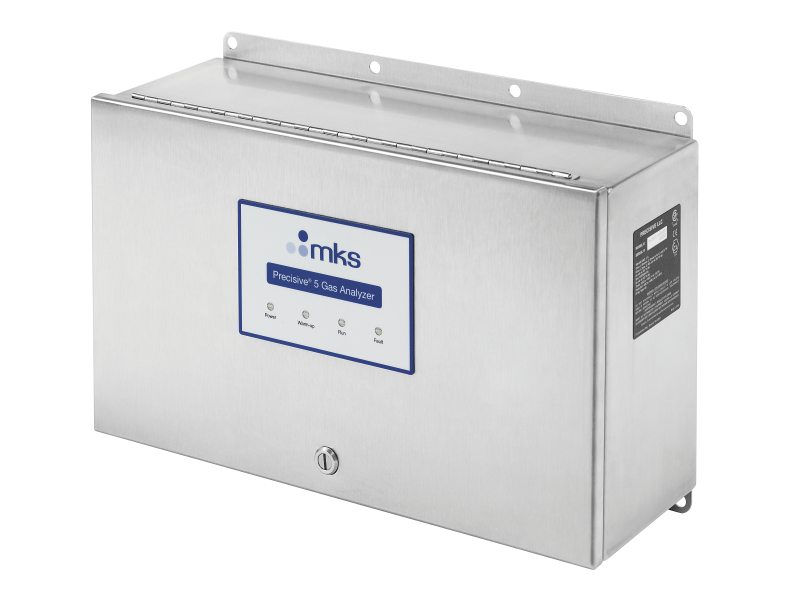

The Precisive® 5-152 Gas Analyzer is a real-time hydrocarbon gas analyzer based on MKS’ unique Tunable Filter Spectroscopy (TFS™) platform. Calibrated for LNG composition monitoring and heating value analysis, this package is optimized for gas-phase LNG product analysis containing C1 – C5 alkane gases.
Technical Specs
-
TypeTFS Gas Analyzer
-
Measurement TechniqueTunable Filter Spectroscopy
-
Measurement RangesMethane: 0-100% (C1)
Ethane: 0-25% (C2)
Propane: 0-25%(C3)
n-Butane: 0-10% (nC4)
iso-Butane: 0-10% (iC4)
C5 (lumped): 0-5% (nC5
neoC5
iC5)
Nitrogen: calculated balance
BTU Calorific Value-CV (computed as per ISO 6976:1995)
Wobbe Index (WI) (per ISO 6976: 2016)
-
RepeatabilityHydrocarbon channels: <±0.05% (absolute)
CV & WI computation: <±0.05% (relative of reading)
