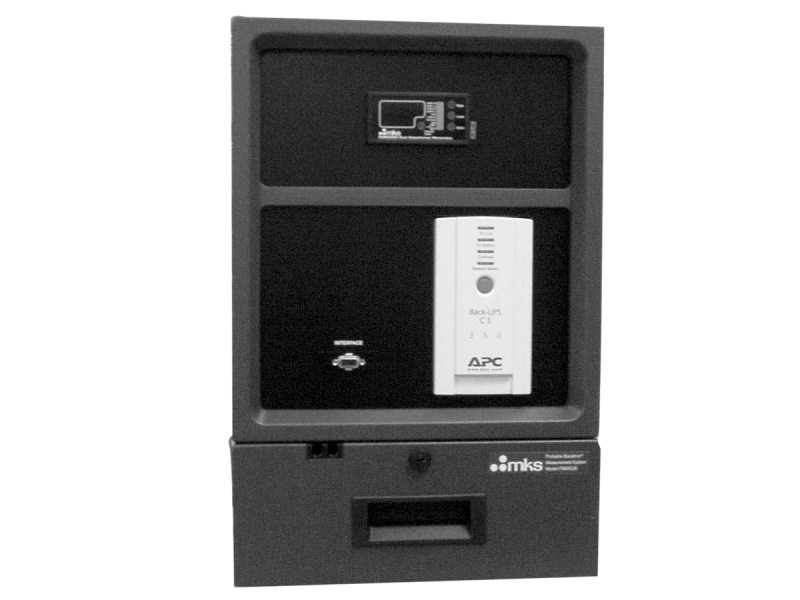

PBMS2F Two-Channel Portable Baratron® Measurement System

This product is not currently available, please contact us for more information and replacement products.

Designed with the cleanroom in mind, the PBMS2F is a portable two-channel pressure standard that is designed for in situ applications. Equally at home on the bench as on the production floor, the unit may be used for any pressure measurement application in the range of 10^-5 to 1000 Torr.

The system includes one or two 627H Baratron® capacitance manometers, a PDR2000 display and an uninterruptable power supply all housed in a rugged wheeled caddy with an extendible handle for easy towing. The caddy also includes an integral tilt stand which, when extended, places the unit at an angle of 15 degrees from the vertical, thereby improving visibility of the display when the unit is on the floor.

See All Features

Specifications

Type
2-channel pressure standard
Transfer Standard
627F Absolute Sensor (NIST traceable)
Accuracy
(non-linearity, hysteresis, and non-repeatability) ± 0.12% of Reading (all ranges except 0.15% for 0.05 and 0.1 Torr, ±0.25% for 0.02 Torr)
Resolution
1 x 10^-4 of Full Scale
Fitting Type
0.5 inch tubulation, NW16KF or 8 VCR®, female
Operating Temperature
15-40°C

Readout
PDR2000, 4½-digit LCD
Power Requirements
110 VAC, 60 Hz; 220 VAC, 50 Hz; 100 VAC, 50/60 Hz; 3A
Warm-up Time
4 hours (Use of the internal 280 VA UPS will keep the transfer standard warmed up and ready for immediate use for at least 60 minutes.)
Enclosure
Metal wheeled caddy with extendible handle and tilt stand
Weight
75 lb. (34 Kg)
