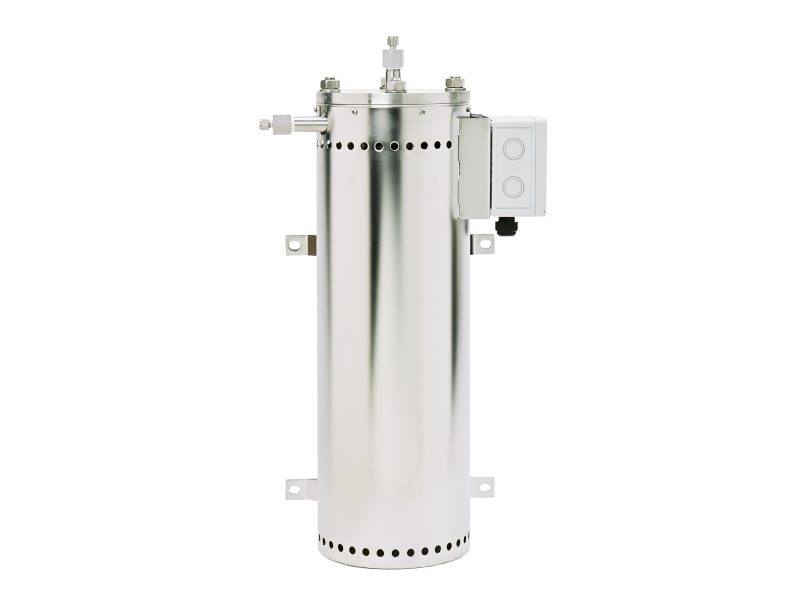

Ozone Gas Destruct, Catalytic Converter for Safe Transformation of Excess Ozone
Model: OVS
Ozone Gas Destruct, Catalytic Converter for Safe Transformation of Excess Ozone
Ozone Gas Destruct, Catalytic Converter for Safe Transformation of Excess Ozone
Model: OVS
Overview
Overview
The OVS ozone gas destruct unit is designed to safely convert high levels of ozone into oxygen, reducing the ozone level down to detection limit, well below safety thresholds.Â
Technical Specs
-
TypeOzone Gas Destruct
-
Ozone Gas DestructionOVS1: 102 g/h at 0.6 m3/h (maximum), OVS4: 324 g/h at 5,4 m3/h (maximum)
-
PowerOVS1: 24VDC , 25 W, external power supply for 100 - 240 VAC included (heated version only), OVS4: 180 - 253 VAC, 50 W (heated version only)
-
Ozone Input ConcentrationOVS1: 280 g/m3 (18.6 wt%) @ 0.25 m3/h (maximum), OVS4: 300 g/m3 (19.6 wt%) @ 0.3 m3/h (maximum)
-
WeightOVS1: 3 kg (6.6 lbs), OVS4: 18 kg (39.7 lbs) - approximate
-
FittingsOVS1: 1/4 inch Swagelok male, OVS4: R 1/2" (DIN2999 - ISO 7/1 PT)
-
Residual Ozone in Output Gasbelow 0.1 ppm
-
Gas FlowOVS1: 1 m3/h at 70 g/m3 (4.8 wt%) (maximum), OVS4: 5.4 m3/h at 60 g/m3 (4.1 wt%) (maximum)
-
DimensionsOVS1: 76 x 518 mm (3 x 20.4 inches), OVS4: 213 x 655 mm (8.4 x 25.8 inches) (width x height)
Resources & Downloads
Drawings & CADs
- Ozone Gas Destruct (OVS) Dimensional Drawings (97.9 kB, PDF)
