OVS Ozone Gas Destruct Catalytic Converter for Safe Transformation of Excess Ozone
Overview
For the safe destruction of excess ozone gas

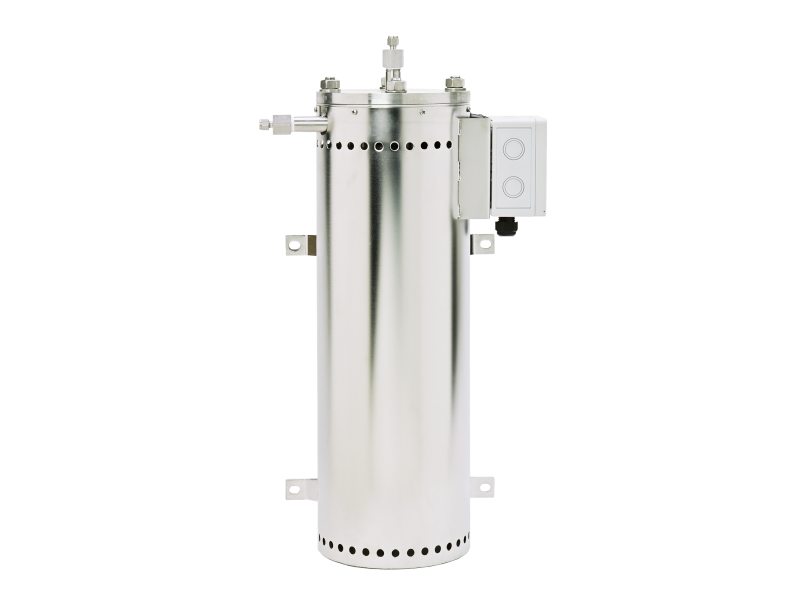

The OVS Ozone Gas Destruct unit is designed to safely convert high levels of ozone into oxygen by use of a catalyst, reducing the ozone level down to detection limit - well below safety thresholds. The catalyst material is contained within a robust stainless steel cylinder. Due to the exothermal reaction, the stainless steel cylinder can get hot. In order to protect personnel and the environment from the hot cylinder surface, the cylinder is contained within a secondary exterior shell.
- Fast, reliable ozone destruction
- Eliminates high concentrations of ozone
- Models for dry or moist ozone environments
- Double-shell design for personnel protection
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
OVS Ozone Gas Destruct, Catalytic Converter for Safe Transformation of Excess Ozone |
|
Specifications
-
TypeOzone Gas Destruct (OVS)
-
Ozone Gas Destruction102 g/h at 0.6 m3/h
or 324 g/h at 5,4 m3/h - maximum, depending on configuration -
Ozone Input Concentration280 g/m3 (18.6 wt%) @ 0.25 m3/h
or 300 g/m3 (19.6 wt%) @ 0.3 m3/h maximum, depending on configuration
-
Fittings1/4 in. Swagelok male, R 1/2 in. (DIN2999 - ISO 7/1 PT), depending on configuration
-
Residual Ozone in Output Gasbelow 0.1 ppm
-
Gas Flow1 m3/h at 70 g/m3 (4.8 wt%)
or 5.4 m3/h at 60 g/m3 (4.1 wt%) maximum, depending on configuration
Resources
Literature
- Ozone Gas Destruct (499.4 kB, PDF)
Drawings & CADs
- Ozone Gas Destruct (OVS) Dimensional Drawings (97.9 kB, PDF)
