MultiGas 2030G FTIR Gas Analyzer
Model: MULTIGAS-2030G
MultiGas 2030G FTIR Gas Analyzer
Model: MULTIGAS-2030G
Overview
Overview

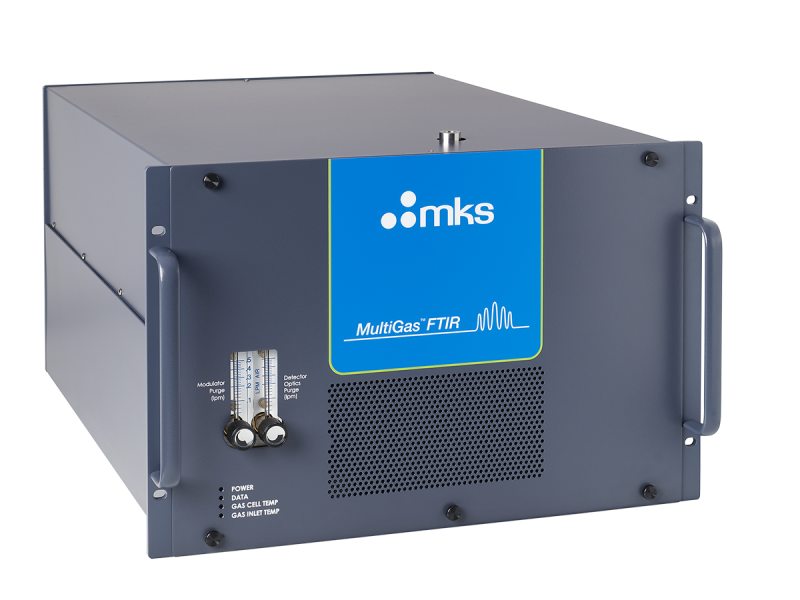

MultiGas 2030G On-line FTIR Gas Analyzer
The 2030G MultiGas™ Analyzer is an FTIR based analyzer capable of ppb sensitivity for multiple gas species in a variety of applications, such as automotive emissions measurement, stack emissions monitoring, process monitoring, ambient air monitoring, purity monitoring, and selective catalytic reduction performance monitoring. The 2030G can perform analysis in gas streams that contain up to 40% water, and can simultaneously analyze and display more than 30 gases. With permanently stored calibration spectra, the need for costly gas cylinders is reduced. In addition, operators will find the robust, fully automated MultiGas 2030G easy to operate and maintain. Multiple detector and gas cell options are available which allow the analyzer to be tailored to the process.
Applications
- Combustion emissions monitoring
- Process monitoring, development and optimization
- Ambient air analysis (industrial hygiene)
- Bulk gas purity analysis
- SCR - selective catalytic reduction performance monitoring
Technical Specs
- TypeFTIR Analyzer
- Measurement TechniqueFTIR Spectrometry
- Measurable Gases & VaporsMost molecules except for He, Ar, N2, H2, and O2
- Measurable RangeConcentration setting between 10ppb and 100% Full Scale
- FTIR2102 Process FTIR
- Spectral Resolution0.5 – 16 cm-1
- Scan Speed1 scan/sec @ 0.5 cm-1
- Scan Time1 - 300 sec
- Infrared SourceSilicon Carbide
- Reference LaserHelium Neon (15798.2 cm-1)
- DetectorLN-cooled MCT; TE-cooled MCT
- Purge Pressure20 psig (1.5 bar) max.
- Spectrometer Purge Flow0.2 L/min of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
- Optics Purge Flow0.2 L/min of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
- Pressure TransducerMKS Baratron capacitance manometer
- Purge ConnectionSwagelok quick connect
- CommunicationRJ-45 Ethernet
- Dimensions17.5 x 12.5 x 25.5 in. (width, height, depth)
- Power Requirements120 or 240 VAC, 50/60 Hz, 3 Amps
- Weight110 lbs. (50 kg)
- Sample TemperatureAmbient to 191°C (calibration temperature dependent)
- Sample Flow0.2 - 10 L/min
- Sample Pressure0.01 - 4 atm (calibration pressure dependent)
- Gas Cell MaterialsNickel coated Al, Welded 316 stainless steel optional, dursan coating
- Fittings0.25 in. Swagelok, 0.25 in. VCR
- TubingHeated 0.25 in. stainless steel, Heated 0.375 in. stainless steel
- MirrorsNickel plated aluminum substrate, with rugged gold coating
- WindowsZnSe, CaF, BaF2, (others available)
- O-ringsKalrez, Viton (others available)
Technical Specs
- TypeFTIR Analyzer
- Measurement TechniqueFTIR Spectrometry
- Measurable Gases & VaporsMost molecules except for He, Ar, N2, H2, and O2
- Measurable RangeConcentration setting between 10ppb and 100% Full Scale
- FTIR2102 Process FTIR
- Spectral Resolution0.5 – 16 cm-1
- Scan Speed1 scan/sec @ 0.5 cm-1
- Scan Time1 - 300 sec
- Infrared SourceSilicon Carbide
- Reference LaserHelium Neon (15798.2 cm-1)
- DetectorLN-cooled MCT; TE-cooled MCT
- Purge Pressure20 psig (1.5 bar) max.
- Spectrometer Purge Flow0.2 L/min of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
- Optics Purge Flow0.2 L/min of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
- Pressure TransducerMKS Baratron capacitance manometer
- Purge ConnectionSwagelok quick connect
- CommunicationRJ-45 Ethernet
- Dimensions17.5 x 12.5 x 25.5 in. (width, height, depth)
- Power Requirements120 or 240 VAC, 50/60 Hz, 3 Amps
- Weight110 lbs. (50 kg)
- Sample TemperatureAmbient to 191°C (calibration temperature dependent)
- Sample Flow0.2 - 10 L/min
- Sample Pressure0.01 - 4 atm (calibration pressure dependent)
- Gas Cell MaterialsNickel coated Al, Welded 316 stainless steel optional, dursan coating
- Fittings0.25 in. Swagelok, 0.25 in. VCR
- TubingHeated 0.25 in. stainless steel, Heated 0.375 in. stainless steel
- MirrorsNickel plated aluminum substrate, with rugged gold coating
- WindowsZnSe, CaF, BaF2, (others available)
- O-ringsKalrez, Viton (others available)
