MultiGas™ 2030 HS
Model: MULTIGAS-2030-HS
MultiGas™ 2030 HS
Model: MULTIGAS-2030-HS
Overview
Overview

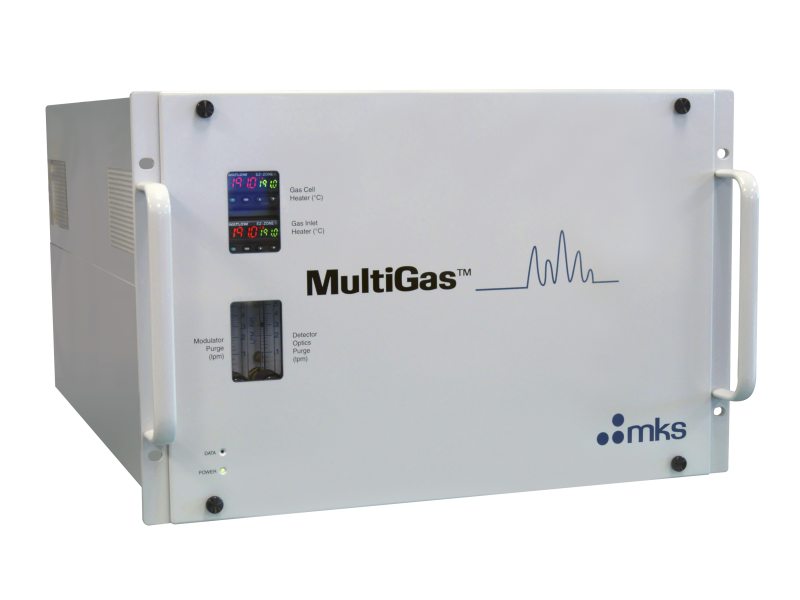

MultiGas™ 2030 HS, High Speed FTIR Gas Analyzer, 5 Hz
MultiGas™ 2030 HS is a high speed, high resolution FTIR based gas analyzer designed to monitor automobile, diesel, locomotive, and catalyst combustion exhaust emissions at 5 measurements per second (5Hz). The MultiGas™ 2030 HS gas analyzer is composed of a high speed 0.5 cm-1 process-hardened FTIR spectrometer. This FTIR spectrometer incorporates a patented 5.11 m high-optical-throughput 200 mL gas sampling cell capable of 100 L/m flow rate no backpressure or noise that would degrade the quantitative measurement. The analyzer generally incorporates a high sensitivity liquid nitrogen cooled MCT detector that can maintain cryogenic temperatures for up to 12 hours on a single charge and up to 3-4 days with an additional 5L external dewar.
Technical Specs
- TypeFTIR Analyzer
- Measurement TechniqueFTIR Spectrometry
- Measurable Gases & VaporsMost molecules except for N2, H2, and O2
- Measurable RangeConcentration setting between 100 ppb and 100% full scale
- FTIR2102 Process FTIR
- Spectral Resolution0.5 - 128cm-1
- Scan Speed5 scans/sec @ 0.5cm-1
- Scan Time0.2 sec or longer
- Infrared SourceSilicon Carbide @ 1200°C
- Reference LaserHelium Neon (15798.2cm-1)
- DetectorLN2 -cooled MCT, TE -cooled MCT
- Purge Pressure20 psig (1.5 bar) max.
- Spectrometer Purge Flow0.2 L/min of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
- Pressure TransducerMKS Baratron Capacitance Manometer
- Purge ConnectionSwagelok quick connect
- Computer RequirementsHigh speed Xeon processor supplied with analyzer
- CommunicationRJ45 cross-over Ethernet, XML, analog, AK, others (please inquire)
- Enclosure19 in. rack mount chassis
- Dimensions17.5 x 12.5 x 25.5 in. (width, height, depth)
- Power Requirements120 or 240 VAC, 50/60 Hz, 3 amps
- Weight110 lbs. (50 kg)
- Sample TemperatureAmbient to 200°C (calibration temperature dependant)
- Sample Flow1 - 100+ L/min
- Sample Pressure0.95 - 1.05 atm (nominal)
- Gas Cell MaterialsNickel coated Al, Welded 316 stainless steel optional
- Fittings0.5 in. Swagelok
- TubingHeated 0.5 in. stainless steel
- MirrorsNickel plated aluminum substrate, with rugged gold coating
- WindowsKBr, CaF2 (others available)
- O-ringsViton (others available)
Technical Specs
- TypeFTIR Analyzer
- Measurement TechniqueFTIR Spectrometry
- Measurable Gases & VaporsMost molecules except for N2, H2, and O2
- Measurable RangeConcentration setting between 100 ppb and 100% full scale
- FTIR2102 Process FTIR
- Spectral Resolution0.5 - 128cm-1
- Scan Speed5 scans/sec @ 0.5cm-1
- Scan Time0.2 sec or longer
- Infrared SourceSilicon Carbide @ 1200°C
- Reference LaserHelium Neon (15798.2cm-1)
- DetectorLN2 -cooled MCT, TE -cooled MCT
- Purge Pressure20 psig (1.5 bar) max.
- Spectrometer Purge Flow0.2 L/min of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
- Pressure TransducerMKS Baratron Capacitance Manometer
- Purge ConnectionSwagelok quick connect
- Computer RequirementsHigh speed Xeon processor supplied with analyzer
- CommunicationRJ45 cross-over Ethernet, XML, analog, AK, others (please inquire)
- Enclosure19 in. rack mount chassis
- Dimensions17.5 x 12.5 x 25.5 in. (width, height, depth)
- Power Requirements120 or 240 VAC, 50/60 Hz, 3 amps
- Weight110 lbs. (50 kg)
- Sample TemperatureAmbient to 200°C (calibration temperature dependant)
- Sample Flow1 - 100+ L/min
- Sample Pressure0.95 - 1.05 atm (nominal)
- Gas Cell MaterialsNickel coated Al, Welded 316 stainless steel optional
- Fittings0.5 in. Swagelok
- TubingHeated 0.5 in. stainless steel
- MirrorsNickel plated aluminum substrate, with rugged gold coating
- WindowsKBr, CaF2 (others available)
- O-ringsViton (others available)
Resources & Downloads
Literature
MultiGas™ 2030 HS Combustion Analyzer (Archive)(264.7 kB, PDF)
