Sorry, this product is no longer offered for sale.

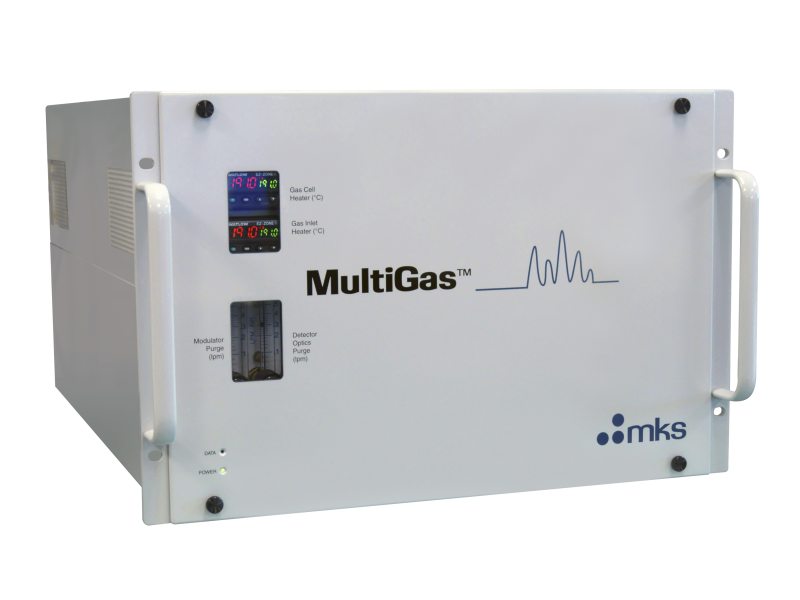

MultiGas™ HiSens 1065-ready
Model: MULTIGAS-2030-1065-READY-HISENS
MultiGas™ HiSens 1065-ready
Model: MULTIGAS-2030-1065-READY-HISENS
Overview
Overview
MultiGas™ HiSens 1065-ready, PPB Level Engine & Vehicle Emissions
The MultiGas™ 1065-Ready HiSens analyzer was tested and validated for use in EPA 40 CFR Part 1065 and 1066 as well as Euro VI certification testing on diluted gas streams for both modal and static bag emissions.
Technical Specs
- TypeFTIR Analyzer
- Measurement TechniqueFTIR Spectrometry
- Measurable Gases & VaporsN2O, CH4, CO, CO2, Formaldehyde, Acetaldehyde, Methanol, Ethanol, Methane, Ethane, Diesel
- Measurable RangeDilute Continuous 0 - 30 ppm Dilute Bag Analysis 0 - 20 ppm
- Spectral Resolution0.58 - 128 cm-1
- Scan Speed5 scans/sec @ 0.58 cm-1
- Scan Time0.2 sec or longer
- Detector5 micron TE-cooled MCT (no liquid nitrogen)
- Purge Pressure20 psig (1.5 bar) max.
- Spectrometer Purge Flow0.2 L/min of dry nitrogen or CO2 free clean dry air with dewpoint below -70°C
- Pressure TransducerMKS Baratron Capacitance Manometer
- Purge ConnectionSwagelok quick connect
- Computer RequirementsHigh speed computer with xeon processor supplied with analyzer (system can also be configured without computer)
- CommunicationRJ45 cross-over Ethernet, XML, analog, AK, OPC, Modbus
- Enclosure19 in. rack mount chassis
- Dimensions17.5 x 12.5 x 25.5 in. (width, height, depth)
- Power Requirements120 or 240 VAC, 50/60 Hz, 3 amps
- Weight110 lbs. (50 kg)
- Gas Cell MaterialsDursan coated stainless steel construction
- Fittings0.375 in. Swagelok
- TubingHeated 0.375 in. stainless steel
- MirrorsNickel plated aluminum substrate, rugged gold coating with MgF2 coating
- WindowsCorrosion resistant CaF2
- O-ringsKalrez
- Effective Path Length5.11 m, 200 mL
Technical Specs
- TypeFTIR Analyzer
- Measurement TechniqueFTIR Spectrometry
- Measurable Gases & VaporsN2O, CH4, CO, CO2, Formaldehyde, Acetaldehyde, Methanol, Ethanol, Methane, Ethane, Diesel
- Measurable RangeDilute Continuous 0 - 30 ppm Dilute Bag Analysis 0 - 20 ppm
- Spectral Resolution0.58 - 128 cm-1
- Scan Speed5 scans/sec @ 0.58 cm-1
- Scan Time0.2 sec or longer
- Detector5 micron TE-cooled MCT (no liquid nitrogen)
- Purge Pressure20 psig (1.5 bar) max.
- Spectrometer Purge Flow0.2 L/min of dry nitrogen or CO2 free clean dry air with dewpoint below -70°C
- Pressure TransducerMKS Baratron Capacitance Manometer
- Purge ConnectionSwagelok quick connect
- Computer RequirementsHigh speed computer with xeon processor supplied with analyzer (system can also be configured without computer)
- CommunicationRJ45 cross-over Ethernet, XML, analog, AK, OPC, Modbus
- Enclosure19 in. rack mount chassis
- Dimensions17.5 x 12.5 x 25.5 in. (width, height, depth)
- Power Requirements120 or 240 VAC, 50/60 Hz, 3 amps
- Weight110 lbs. (50 kg)
- Gas Cell MaterialsDursan coated stainless steel construction
- Fittings0.375 in. Swagelok
- TubingHeated 0.375 in. stainless steel
- MirrorsNickel plated aluminum substrate, rugged gold coating with MgF2 coating
- WindowsCorrosion resistant CaF2
- O-ringsKalrez
- Effective Path Length5.11 m, 200 mL
Resources & Downloads
Literature
MultiGas™ 2030 1065-Ready HiSens (archived)(143 kB, PDF)
