Poppet Valve, LoPro, NW50 ISO-KF, Angle Ports, Viton Seals, Pneumatic
Model: LPV1-50-AK-CNVS
Poppet Valve, LoPro, NW50 ISO-KF, Angle Ports, Viton Seals, Pneumatic
Poppet Valve, LoPro, NW50 ISO-KF, Angle Ports, Viton Seals, Pneumatic
Model: LPV1-50-AK-CNVS
Overview
Overview

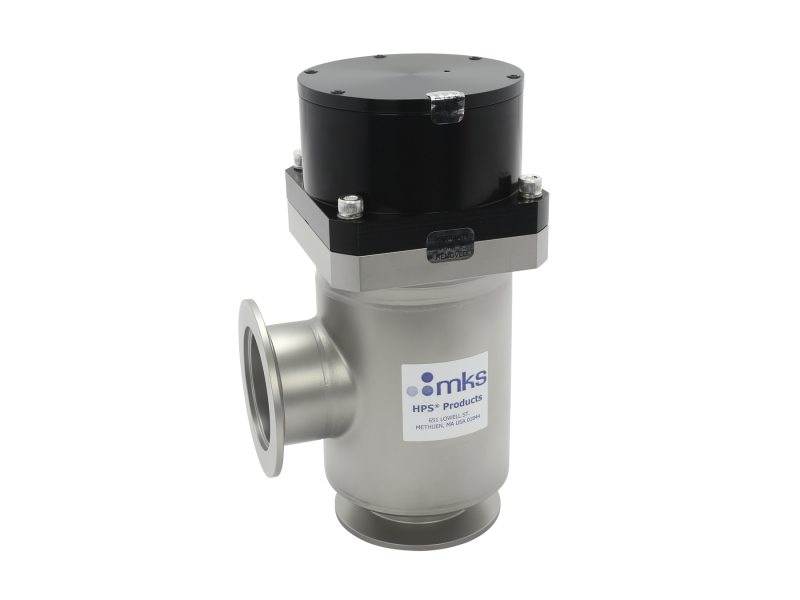

The Pneumatic LoPro™ LPV1-50-AK-CNVS Vacuum Valve with an angle body configuration, ISO-KF NW50 flanges, Viton seals has pneumatic actuation. It has a small footprint that fits easily into existing, and new, vacuum systems. LoPro™ Valves are extremely reliable, with a lifetime that can extend to 1,000,000 cycles under clean conditions, greatly increasing system uptime.
Technical Specs
-
TypeLow-profile, Single-stage, Bellows-sealed Poppet Valve
-
Vacuum RangeAtmosphere to 1.0 x 10-9 Torr
-
Body ConfigurationAngle
-
Port SizeNW50
-
Flange SizeNW50
-
Flange TypeISO-KF
-
Helium Leak Rate1.0 x 10-9 std cc/sec
-
ActuationPneumatic
-
Limit SwitchNo
-
SealViton
-
Cylinder Volume6.4 in3
-
Cylinder Air Pressure90 psig ± 30 psig
-
Actuation TimeOpening: 0.45 sec, Closing: 1.13 sec
-
Maximum Internal Spring Closing Pressure60 psia
-
Maximum Bakeout Temperature150°C
-
Typical Life1,000,000 cycles
-
Weight5.4 lbs.
