Poppet Valve, LoPro, NW50 ISO-KF, AnglePorts, Kalrez Seals, Pneumatic, w/Limit Switch
Model: LPV1-50-AK-CLKS
Poppet Valve, LoPro, NW50 ISO-KF, AnglePorts, Kalrez Seals, Pneumatic, w/Limit Switch
Poppet Valve, LoPro, NW50 ISO-KF, AnglePorts, Kalrez Seals, Pneumatic, w/Limit Switch
Model: LPV1-50-AK-CLKS
Overview
Overview

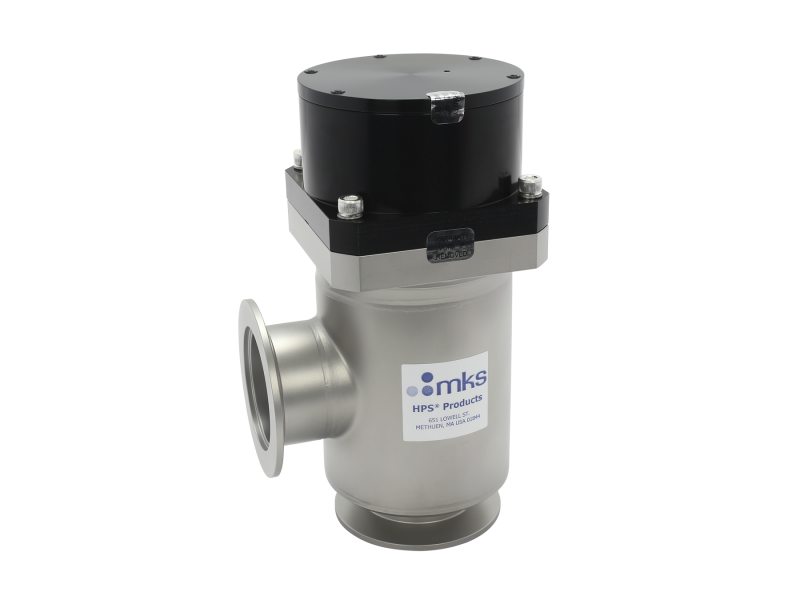

The LoPro™ LPV1-50-AK-CLVS Vacuum Valve with an anglebody configuration, ISO-KF NW50 flanges, Kalrez seals has pneumatic actuation and a limit switch. It has a small footprint that fits easily into existing, and new, vacuum systems. A formed stainless steel bellows prevents outgassing, virtual leaks, and particle entrapment between bellows convolutions that extends the valves life cycle over a conventional O-ring shaft sealed valve.
Technical Specs
-
TypeLow-profile, Single-stage, Bellows-sealed Poppet Valve with Limit Switch
-
Vacuum RangeAtmosphere to 1.0 x 10-9 Torr
-
Body ConfigurationAngle
-
Flange SizeNW50
-
Flange TypeNW50
-
Flange-Fitting, Side PortISO-KF
-
Helium Leak Rate1.0 x 10-9 std cc/sec
-
ActuationPneumatic
-
Limit SwitchYes
-
SealKalrez
-
Cylinder Volume2.2 in3
-
Cylinder Air Pressure90 psig ± 30 psig
-
Actuation TimeOpening: 0.27 sec, Closing: 0.53 sec
-
Maximum Internal Spring Closing Pressure60 psia
-
Maximum Bakeout Temperature150°C
-
Typical Life1,000,000 cycles
-
Weight3.1 lbs.
