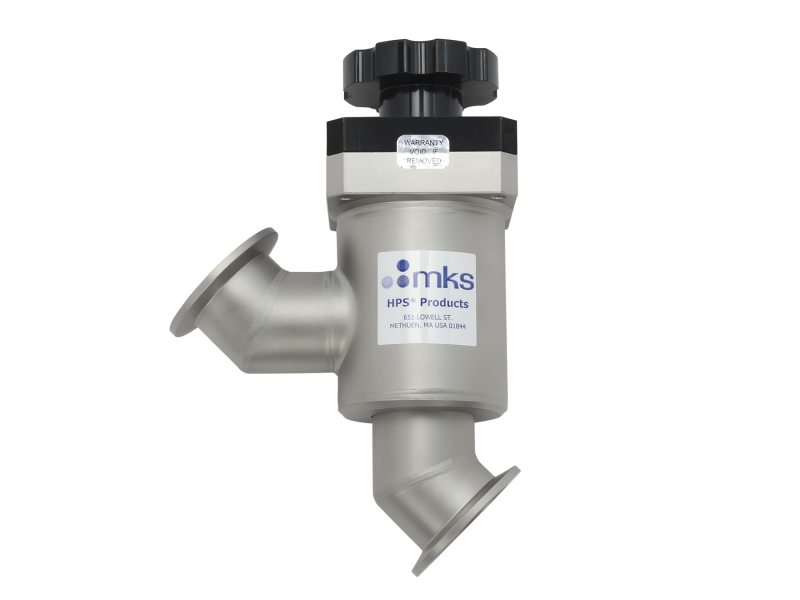

Poppet Valve, LoPro, NW40 ISO-KF, Inline Ports, Viton Seals, Manual

Technical Specs

  • Type
    Low-profile, Single-stage, Bellows-sealed Poppet Valve
  • Vacuum Range
    Atmosphere to 1.0 x 10-9 Torr
  • Body Configuration
    Inline
  • Port Size
    NW40
  • Flange Size
    NW40
  • Flange Type
    ISO-KF
  • Helium Leak Rate
    1.0 x 10-9 std cc/sec
  • Actuation
    Manual
  • Limit Switch
    No
  • Seal
    Viton
  • Maximum Internal Spring Closing Pressure
    60 psia
  • Maximum Bakeout Temperature
    150°C
  • Typical Life
    1,000,000 cycles
  • Weight
    3.1 lbs.
