Vacuum Isolation Valve, Cv, NW25 ISO-KF, Inline Ports, Viton, Pneumatic
Model: CVNL-K2-NCVV
Vacuum Isolation Valve, Cv, NW25 ISO-KF, Inline Ports, Viton, Pneumatic
Vacuum Isolation Valve, Cv, NW25 ISO-KF, Inline Ports, Viton, Pneumatic
Model: CVNL-K2-NCVV
Overview
Overview

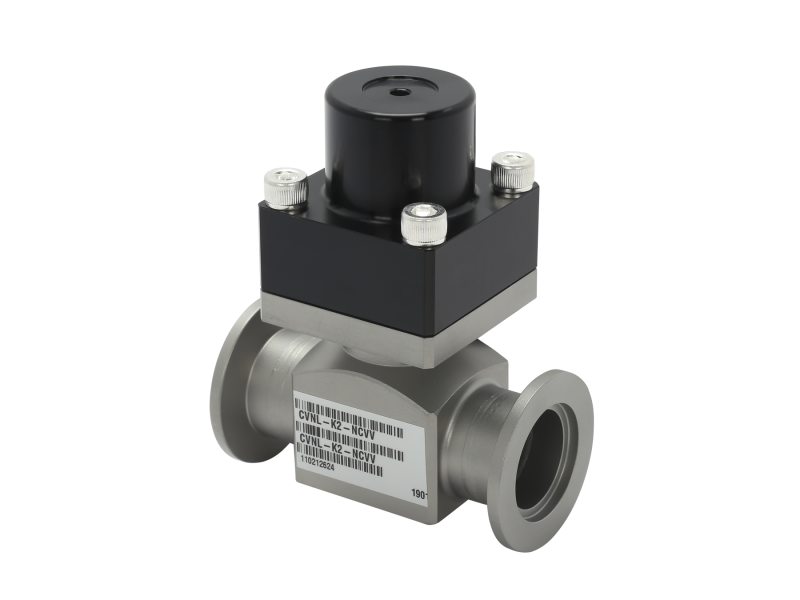

The CVNL-K2-NCVV Compact Vacuum Valve with Viton seals, ISO-KF NW25 flanges, and pneumatic actuation is configured as an inline valve, manufactured from high grade, corrosion resistant, 304 stainless steel with non-magnetic properties to ensure more accurate gauge readings. MKS utilizes clean, tungsten inert gas (TIG) welding for significantly fewer entrapment areas. A formed 321 stainless steel bellows is incorporated into the Cv Valve. The stroke length has been optimized to ensure a longer life cycle while maintaining high conductance. Vacuum exposed parts are clean and free of lubricants.
Technical Specs
-
TypeCompact Valve
-
Vacuum RangeAtmosphere to below 10-9 Torr
-
Body ConfigurationInline
-
Port Size1.0 in.
-
Flange SizeNW25
-
Flange TypeISO-KF
-
Helium Leak RateLess than 1.0 X 10-9 std cc/sec
-
Wetted Volume1.09 in3 (17.8 cm3)
-
ActuationPneumatic
-
Limit SwitchNo
-
SealViton
-
Operating Temperature-26° - 125°C
-
OrientationSeals against atm at either port
-
Typical Life1,000,000 cycles
-
Weight12.8 - 16.9 oz. (360 - 480 g) depending on configuration
Resources & Downloads
Literature
- Cv Valves - Compact Vacuum Valves (266.4 kB, PDF)
