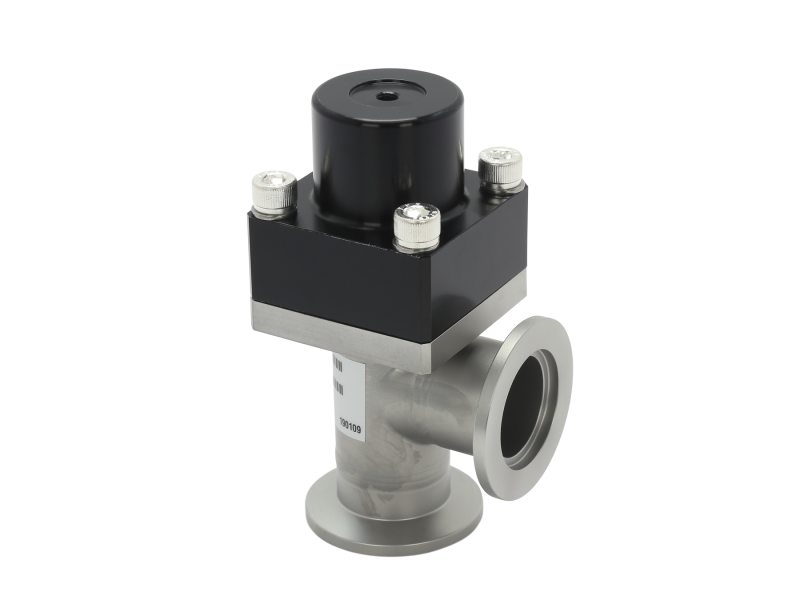

Vacuum Isolation Valve, Cv, NW25 ISO-KF, Angle Ports, Viton, Pneumatic

Technical Specs

  • Type
    Compact Valve
  • Vacuum Range
    Atmosphere to below 10-9 Torr
  • Body Configuration
    Angle
  • Port Size
    1.0 in.
  • Flange Size
    NW25
  • Flange Type
    ISO-KF
  • Flange-Fitting, Side Port
    KF25
  • Flange-Fitting, Bottom Port
    KF25
  • Helium Leak Rate
    Less than 1.0 X 10-9 std cc/sec
  • Wetted Volume
    1.09 in3 (17.8 cm3)
  • Actuation
    Pneumatic
  • Limit Switch
    No
  • Nose Seal
    Viton
  • Bonnet Seal
    Viton
  • Cylinder Volume
    0.25 in.3 (4.1 cm3)
  • Cylinder Air Pressure
    60 - 120 psig
  • Solenoid Voltage
    AC: 6.0 Watts, DC: 7.0 Watts
  • Blow-By Pressure
    30 psi (1500 Torr) differential
  • Operating Temperature
    -26° - 125°C
  • Orientation
    Seals against atm at either port
  • Typical Life
    1,000,000 cycles
  • Weight
    12.8 - 16.9 oz. (360 - 480 g) depending on configuration
