Vacuum Isolation Valve, Compact, NW25 ISO-KF, Angle, Viton, 24 VDC Solenoid
Model: CV25-K2K2-ECLVV-24DC
Vacuum Isolation Valve, Compact, NW25 ISO-KF, Angle, Viton, 24 VDC Solenoid
Vacuum Isolation Valve, Compact, NW25 ISO-KF, Angle, Viton, 24 VDC Solenoid
Model: CV25-K2K2-ECLVV-24DC
Overview
Overview

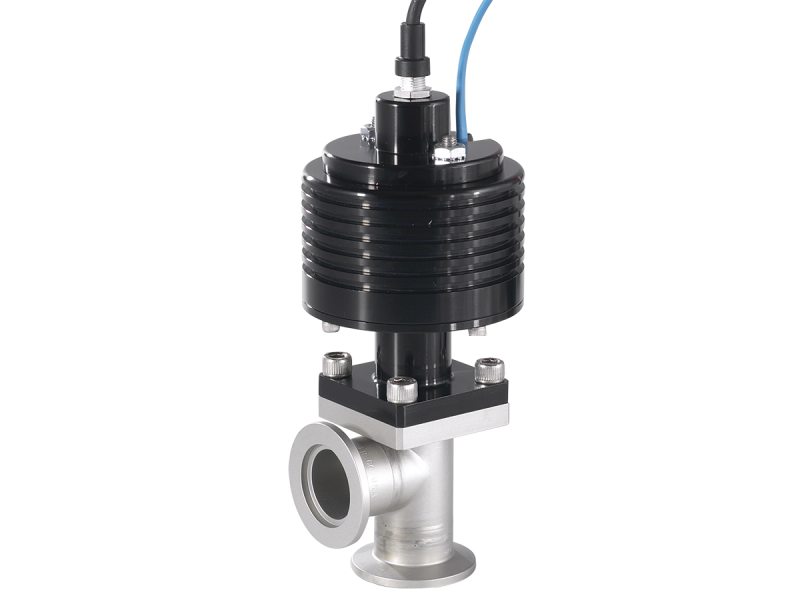

The CV25-K2K2-ECLVV-24DC Electromagnetic Cv Valve has an angle body configuration, ISO-KF NW25 flanges, Viton Seals, and operates with 24VDC power. It can be used in place of any existing Cv valve where electric actuation is preferred over pneumatic or manual actuation. ECv valves are actuated by a direct current electric power supply, and do not require the use of a pneumatic system.
Technical Specs
-
TypeElectromagnetic Valve
-
Vacuum RangeAtmosphere to 10-9 Torr
-
Body ConfigurationAngle
-
Port Size1.0 in.
-
Flange TypeISO-KF NW25
-
Flange-Fitting, Side PortNW25
-
Flange-Fitting, Bottom PortNW25
-
Helium Leak RateLess than 1.0 x 10-9 std cc/sec
-
Wetted Volume1.09 in3 (17.8 cm3) (approximate)
-
ActuationElectromagnetic, Normally Closed
-
Limit SwitchYes
-
Nose SealViton
-
Bonnet SealViton
-
Control Port Options24 VDC Solenoid
-
Voltage Requirements24 VDC
-
Amperage Requirements1.3 Amps (initial) 0.3 Amps (running)
-
Solenoid Voltage32 Watts (initial) 7 Watts (running)
-
Blow-By PressureN/C 35 psi, N/O 50 psi
-
Actuation Time60 msec (opening/closing)
-
Operating Temperature-26 - 60°C
-
Maximum Bakeout Temperature150°C (with solenoid coil removed)
-
OrientationSeals against ATM at either port
-
Typical Life1,000,000 cycles
-
Weight38.7 oz (1090 g) (approximate)
Resources & Downloads
Literature
- Electromagnetic Cv Valve (154.8 kB, PDF)
