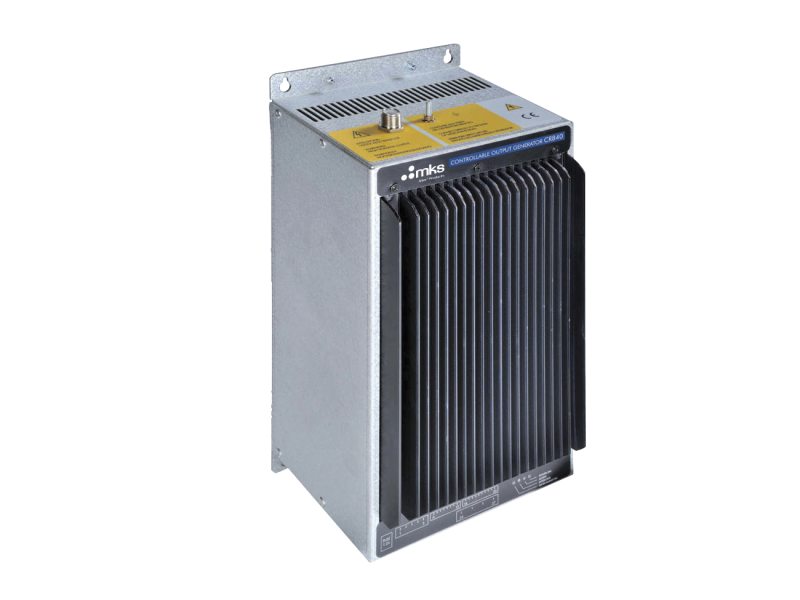

Microwave Power Supply, 2 kW, 2.45 GHz Magnetron, Alter CR-840

Technical Specs

  • Type
    Microwave Power Supply
  • Power Output
    3000 W
  • Power Requirements
    3 x 400 V + N
  • Line Frequency
    50/60 Hz
  • Efficiency
  • Output Current
    750 mA (max.)
  • Alarm Management
    In the event of an alarm condition, the alarm contact opens, the output power is switched off and the alarm contact is latched. A reset procedure is required to turn the unit back on.
  • Dimensions
    190 x 168.5 x 387 mm (7.48 x 6.63 x 15.24 inches) (width x height x depth)
  • Weight
    10kg (22 lbs)
  • Cooling
    Forced air, approx 80 m3/h
  • Ambient Operating Temperature
    40°C (104°F) (max.)
  • Compliance
    CE mark, Directive EMC and LV, through norms EN61010-1, EN61000-6-4, EN61000-6-2
  • Preferred Microwave Magnetron Head
    TMA20 (Closed head, air cooled, waveguide size WR340), TM020 (Closed head, water cooled, waveguide size WR 340), TI020 (Integral head, waveguide size WR340, includes isolator)
  • Compatible with
    2kW, 2.45 GHz Magnetron
