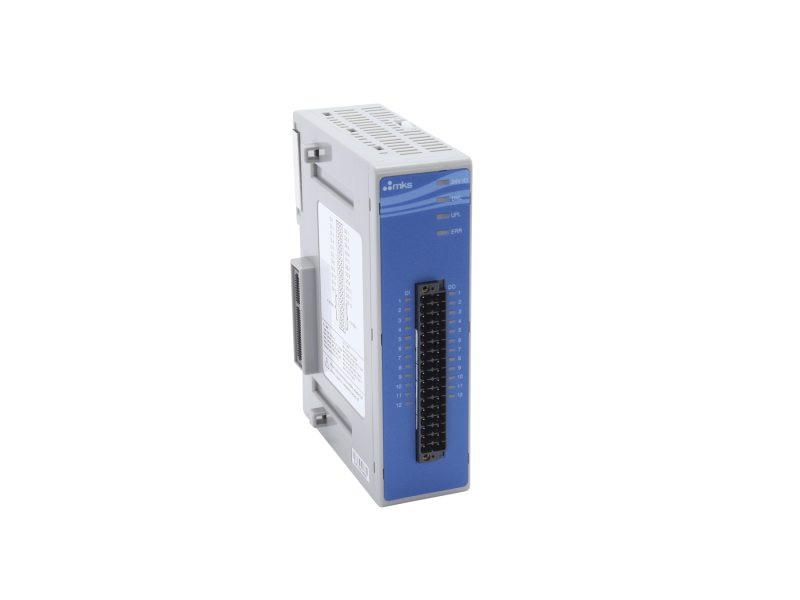

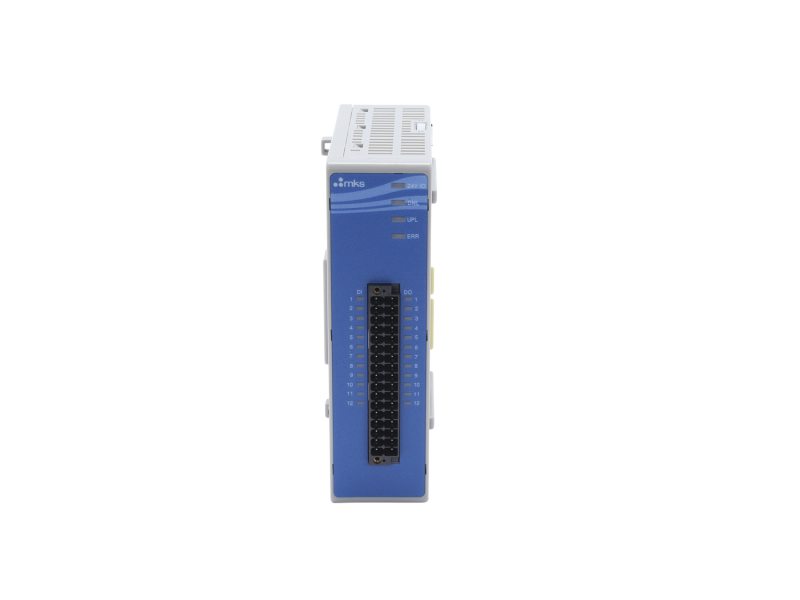

Digital IO Module, 12 Sink Inputs, 12 Sink Outputs, 24 VDC Logic
Model: AS11893G-11
Digital IO Module, 12 Sink Inputs, 12 Sink Outputs, 24 VDC Logic
Model: AS11893G-11
Overview
Overview
The AS11893G-11 Digital Input/Output module provides a compact and high density solution for integrating 12 digital sink input channels and 12 digital sink output channels with 24 VDC logic levels to MKS PAC or CM modules.
Technical Specs
- TypeDigital Input/Output Module
- Number of Inputs12
- Input TypeSink or Source
- Number of Outputs12
- I/O Range0 - 20 Volts, Sink
- Power Consumption@ 200mA = 24 V_IO@ 2.5 Amp, 24 V_CORE@ 0.15 Amp (per module) Assuming all DOs are loaded
- Input Isolation2.5 kVrms
- DI refresh rate10 µs or 1 ms
- Debounce FilterFixed to 4 cycles of DI Refresh Rate (10.8 µsec)
- Logic Level24 VDC (8 - 30 VDC)
- Maximum update rate25 µSec
- Output TypeOpen collector sink/source
- ProtectionESD to IEC 61000-4-2 ±4 kV contact, short to +24 VDC, 24 V inductive load switching (each channel)
- Pull Up/Down Value22K
- Sink Input Logic Level24 VDC ±5%
- Sink Input Nominal Load Impedance6 kOhm
- Sink Input Current, Maximum OFF2.25 mA (10.7 V)
- Sink Input Current, Minimum ON3.3 mA (4.5 V)
- Sink Input Current, Maximum ON4.7 mA
- Sink Output Maximum thermal current limit (ON)2 A per bank of 6
- Sink Output Maximum Available Current Sink (ON)200 mA
- Sink Output Maximum Leakage Current (OFF)0.1 mA (output tied to 24 v)
- Sink Output Maximum Voltage Drop (ON)Maximum 1.1 v @ 200 mA
- Sink Output Minimum Thermal Current Limit (ON)1 A per bank of 6
- Sink Output Maximum Inductive Load Energy, 1Hz Cycled60 mJ
- Source Input Logic level24 V
- Source Input High Voltage Range OFF12.8 V (2.15 mA)
- Source Input Low Voltage Range ON15 V (2.5 mA)
- Source Input Input Current, Maximum ON4.7 mA
- Source Input Nominal Load Impedance6 kOhm
- Source Output High VoltageMinimum 23.7 V @ 200 mA
- Source Output Maximum Available Current Source (ON)200 mA
- Source Output Maximum Thermal Current Limit (ON)2 A per bank of 6
- Source Output Minimum Thermal Current Limit (ON)1 A per bank of 6
- Source Output Maximum Inductive Load Energy, 1Hz Cycled60 mJ
- Operating Temperature0 - 55°C, with 2°C upper limit reduction per 1000 ft above sea level
- Storage Temperature-40 - 85°C
- Altitude0-10,000 ft above sea level
- Humidity5 - 85% non-condensing
- Dimensions35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 in.)
- MountingDIN rail
