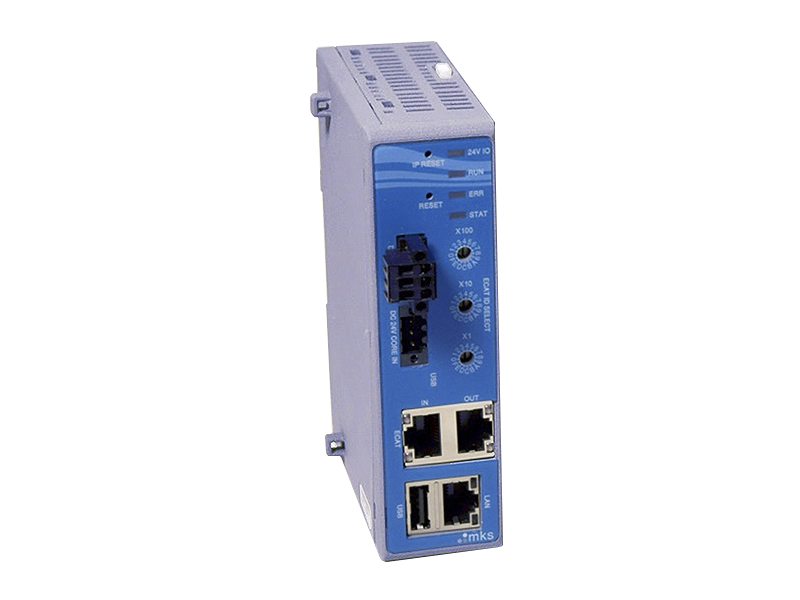

Programmable Automation Controller, PAC 100, EtherCAT Slave

Technical Specs

  • Type
    Programmable Automation Controller
  • Processor
    ARM Cortex-M4, 100 MHz
  • Operating System
    RTOS
  • Internal RAM
    256 MB
  • Expandable Memory
    Micro SD, 1 or 2 GB
  • Dimensions
    35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 in.) (width x height x depth)
  • Communication
    EtherCAT slave
  • Network Interface
    USB OTG, 1 x RJ45 (Ethernet) 10/100 Mbits/s
  • I/O Interface
    L-Bus
  • User Interface
    LEDs
  • OPC Server Enabled
    No
  • Programming Languages
    Labview, CWB, IEC61131-3, Ladder Logic, Structured Text, Function Block Diagrams, Instruction List, Sequential Function Charts, Software develop kit (SDK) option also available on MKS PACs to program in C/C++
  • Code Space
    1 MB
  • Program Instances Per Resource
    1000
  • Project Tree Nodes
    8000
  • Program Instances per Task
    500
  • Project Tree Resources
    1/1
  • Included Libraries
    32
  • Local Variables Per POU
    1500
  • Global Variables Per POU
    5000
  • Tasks Per Resource
    16
  • Number of Supported I/Os Per Project
    128 Kbytes
  • Number of POU per Project
    256
  • I/O Groups
    200
  • Project Tree Configurations
    100/100
  • POUs in One Project
    2000
  • Power Supply
    24 VDC
  • Operating Temperature
    0 - 50°C
  • Storage Temperature
    -40 - 85°C
  • Humidity
    5 - 85% (non-condensing)
  • Altitude
    Up to 2000 meters
