PAC 1000 Programmable Automation Controllers

Model: AS11850G-21

PAC 1000 Programmable Automation Controllers

Model: AS11850G-21

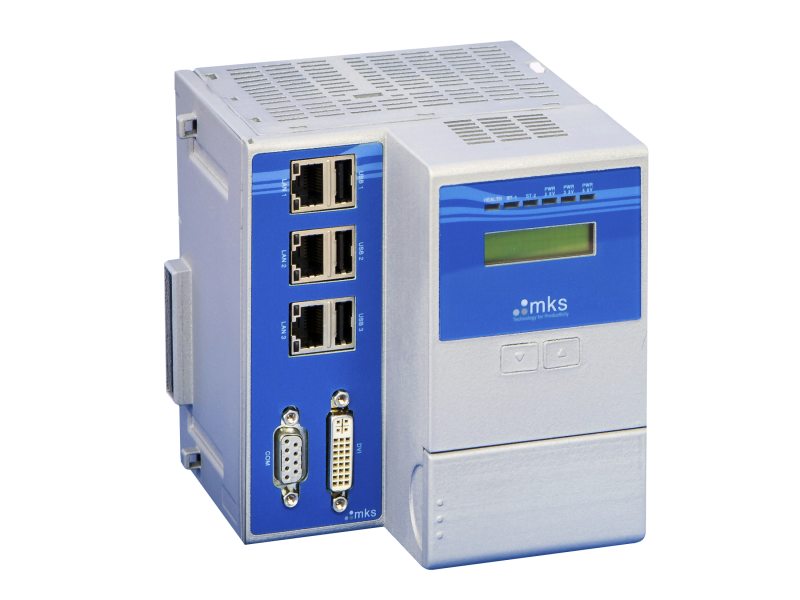

mks programmable automation controller

Technical Specs

  • Type
    Programmable Automation Controller
  • Processor
    ARM Cortex-A9, 1 GHz, 4 core
  • Operating System
    WEC7
  • Internal RAM
    2 GB
  • Expandable Memory
    SD card (SDHC or SDxC)
  • Dimensions
    130 x 125 x 140 mm (width x height x depth)
  • Communication
    EtherCAT master, Modbus TCP/IP slave
  • Network Interface
    3 x USB 2.0, 1 x USB OTG, DVI, 3 x RJ45 (Ethernet) 10/100Mbits/s, 1 console
  • I/O Interface
    L-Bus
  • User Interface
    LCD screen, 2 buttons, LEDs
  • OPC Server Enabled
    Yes
  • Programming Languages
    Labview, CWB, IEC61131-3, C/C++ (via SDK), Ladder Logic, Structured Text, Function Block Diagrams, Instruction List, Sequential Function Charts, Software develop kit (SDK) option also available on MKS PACs to program in C/C++
  • Code Space
    MicroSD card slot
  • Program Instances Per Resource
    1000
  • Project Tree Nodes
    8000
  • Program Instances per Task
    500
  • Project Tree Resources
    1/1
  • Included Libraries
    32
  • Local Variables Per POU
    1500
  • Global Variables Per POU
    5000
  • Tasks Per Resource
    16
  • Number of Supported I/Os Per Project
    128 Kbytes
  • Number of POU per Project
    256
  • I/O Groups
    200
  • Project Tree Configurations
    100/100
  • POUs in One Project
    2000
  • Power Supply
    Requires MKS PWR Power Module (requires 24VDC)
  • Operating Temperature
    0 - 50°C
  • Storage Temperature
    -40 - 85°C
  • Humidity
    5 - 85% (non-condensing)
  • Altitude
    Up to 2000 meters
