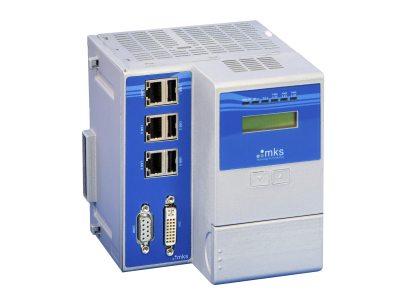

PAC 1000 Programmable Automation Controllers
PAC 1000 Programmable Automation Controllers
The PAC 1000 Programmable Automation Controller (PAC) merges the features of Programmable Logic Controllers (PLC) and Industrial Personal Computers (IPC), to create an open standards, networked, programmable, flexible, and scalable PAC, all in a modular, DIN rail mountable plastic enclosure.
Specifications
- ProcessorARM Cortex-M4, 100 MHz
- Operating SystemRTOS
- Internal RAM256 MB
- Expandable MemoryMicro SD, 1 or 2 GB
- Dimensions35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 in.) (width x height x depth)
- CommunicationModbus TCP/IP slave
- Network ProtocolFieldbus Master, EtherCAT, Modbus TCP/IP
- Network InterfaceUSB OTG, 1 x RJ45 (Ethernet) 10/100 Mbits/s
- I/O InterfaceL-Bus
- User InterfaceLEDs
- OPC Server EnabledNo
- Programming LanguagesLabview, CWB, IEC61131-3, Ladder Logic, Structured Text, Function Block Diagrams, Instruction List, Sequential Function Charts, Software develop kit (SDK) option also available on MKS PACs to program in C/C++
- Code Space1 MB
- Program Instances Per Resource1000
- Project Tree Nodes8000
- Program Instances per Task500
- Project Tree Resources1/1
- Included Libraries32
- Local Variables Per POU1500
- Global Variables Per POU5000
- Tasks Per Resource16
- Number of Supported I/Os Per Project128 Kbytes
- Number of POU per Project256
- I/O Groups200
- Project Tree Configurations100/100
- Power Supply24 VDC
- Operating Temperature0 - 50°C
- Storage Temperature-40 - 85°C
- Humidity5-85% (non-condensing)
- AltitudeUp to 2000 meters
Resources
Application Notes
Seamless Integrated Automation Using the MKS Automation Platform(834.6 kB, PDF) Plug-and-Play Solution for Automation Control - Using the MKS Automation Platform with LabVIEW™(494.8 kB, PDF) Real-Time Monitoring, Fault Detection and Reporting(1.4 MB, PDF)
Literature
MKS Automation Platform(474.7 kB, PDF)
