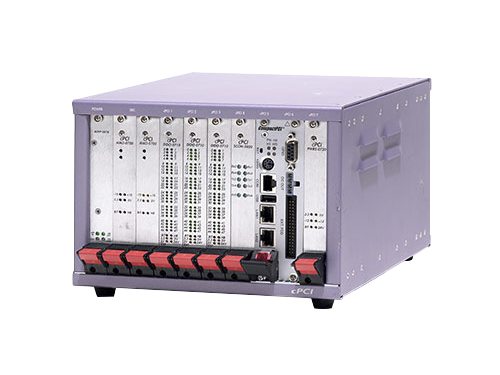

CompactPCI Card Cages
Model: AS00760-02
CompactPCI Card Cages
Model: AS00760-02
Overview
Overview
The AS00760-02 CompactPCI (cPCI) Card Cage provides support for a 3U CompactPCI (cPCI) system. The rear section supports 80mm rear signal transition cards and can also contain a signal distribution PCB designed to specific connector requirements. The cage form factor complies with CompactPCI (cPCI) Specification PICMG® 2.0 R2.1.
Technical Specs
- TypeCard Cage
- Form FactorSupports Plug in Eurocard, 3U Height
- PCB Dimensions227.5 x 153 x 292.8mm (width x height x depth)
- FanThree 24V, 60x60x15mm, 10 cfm fans
- Rear ConnectorsMetric 2.0 mm grid, male connector type A is used for J1 (cPCI BUS) and J2 (Signal distribution)
