CompactPCI Card Cages

Resources
Contact Us

Overview

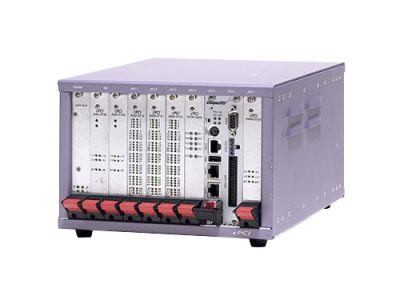

cPCI card cages provide support for a 3U CompactPCI (cPCI) system. The rear section supports 80mm rear signal transition cards and can also contain a signal distribution PCB designed to a specific connector requirements. The cage form factor complies with CompactPCI (cPCI) Specification PICMG® 2.0 R2.1.

Specifications

Type

3U CompactPCI Card Cage
Form Factor

Supports Plug in Eurocard, 3U Height
Size

227.5 mm Width x 153 mm Height x 292.8 mm Depth
Fan

Three 24 V, 60 x 60 x 15 mm, 10 cfm fans

Inlet

Bottom
Outlet

Sides
Connector

Backplane Connectors: Metric 2.0mm grid, male connector type A is used for J1 (cPCI BUS) and J2 (Signal distribution)
Compliance

PICMG 2.0 R 2.1
