Micro-Baratron® High Pressure, Ultraclean, Single-end, Pressure Transducers
Micro-Baratron® High Pressure, Ultraclean, Single-end, Pressure Transducers

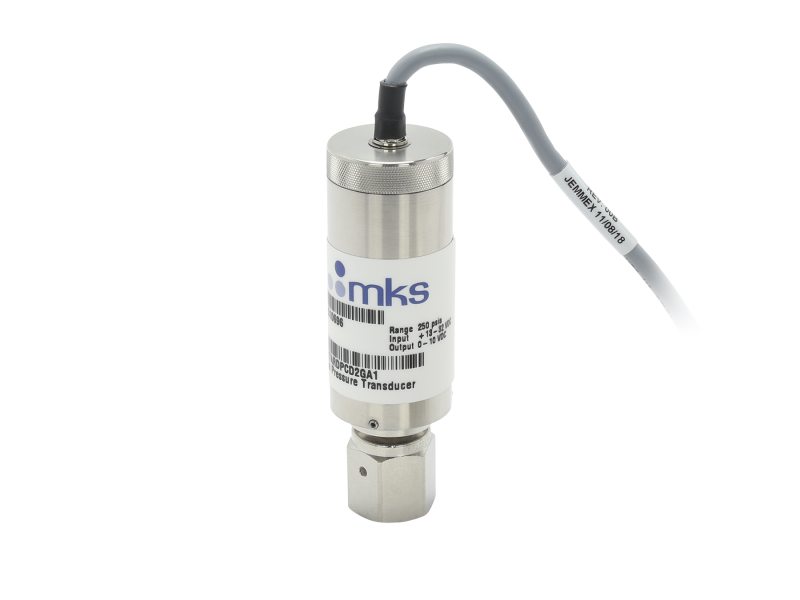

The AA07A Micro-Baratron® is a higher accuracy, single-end pressure transducer.
Specifications
- ConfigurationSingle-ended
- Measurement TypeAbsolute
- Accuracy1.0% of Reading
- Zero Temperature Coefficient0.02% of Full Scale/°C, 50 psia to 3000 psia
0.04% of Full Scale/°C, 1000 Torr - Span Temperature Coefficient0.04% of Reading/°C, 50 psia to 3000 psia
0.08% of Reading/°C, 1000 Torr - Overpressure Limit1.5 x Full Scale for ranges from 1000 Torr to 500 psi
1.2 x Full Scale for ranges from 501 to 3000 psi
- Burst Pressure10 x Full Scale for ranges from 1000 Torr to 500 psi
5 x Full Scale for ranges from 501 to 3000 psi - Wetted SurfacesIncoloy®
- Surface Finish≤5 µin. Ra
- Power Requirements13 to 32 VDC @ 10 mA max.
- Operating Temperature Range0° to 50°C
- ComplianceCE
Resources
Drawings & CADs
AA07 & AA08 Baratron® Pressure Transducer Dimensional Drawing(1,009.5 kB, PDF)
Literature
AA07A, AA08A Micro-Baratron® (archive)(241.6 kB, PDF)
Manuals
AA07 & AA08 Pressure Transducer Pin-outs(25.5 kB, PDF) AA07A, AA08A Baratron Pressure Transducer Manual (1078144)(407.6 kB, PDF)
