Vacuum Pressure Transducer, MicroPirani, 4 VCR-F, EtherCAT
Model: 925-47020
Vacuum Pressure Transducer, MicroPirani, 4 VCR-F, EtherCAT
Model: 925-47020
Overview
Overview

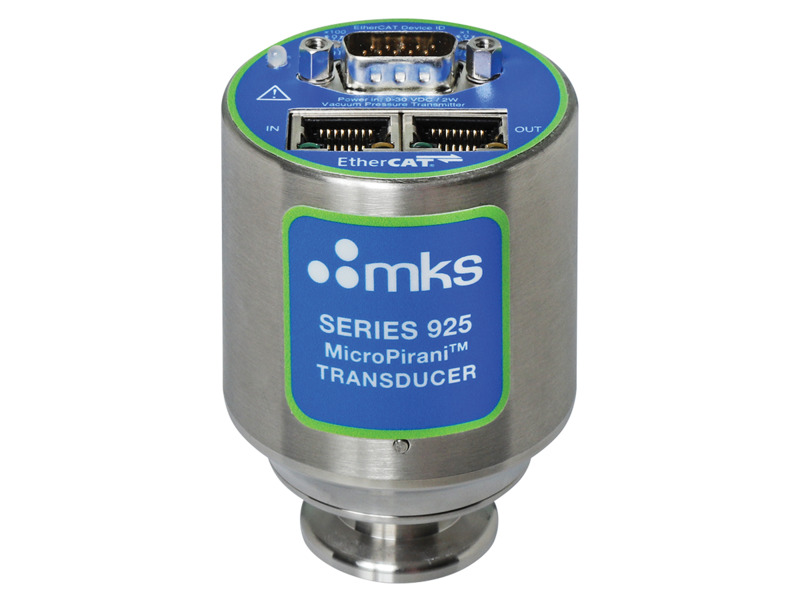

The 925-47020 Micro Pirani™ Vacuum Transducer with MEMS-based Micro Pirani™ Vacuum Sensor is a thermal conductivity vacuum gauge based on a unique, MEMS-based (Micro-Electro-Mechanical Systems) vacuum sensor. This 925 transducer offers a wide measurement range from 1x10-5 Torr to atmosphere, and features a 4 VCR-F fitting with EtherCAT communications.
Technical Specs
- Absolute Measurement Range1.0 x 10-5 to 760 Torr
- Digital CommunicationEtherCAT
- TypeVacuum Transducer
- SensorMicroPirani (MEMS Thermal Conductivity)
- DisplayNo
- Seal MaterialViton
- EnclosureStandard
- InterfaceEtherCAT/Analog
- Relaysn/a
- Fitting Type4 VCR-F
- Installation OrientationAny
- ComplianceCE
