Software Suite, Vacuum Quality Monitor

Model: 835400

$624

Add to List

Compare

Add to List

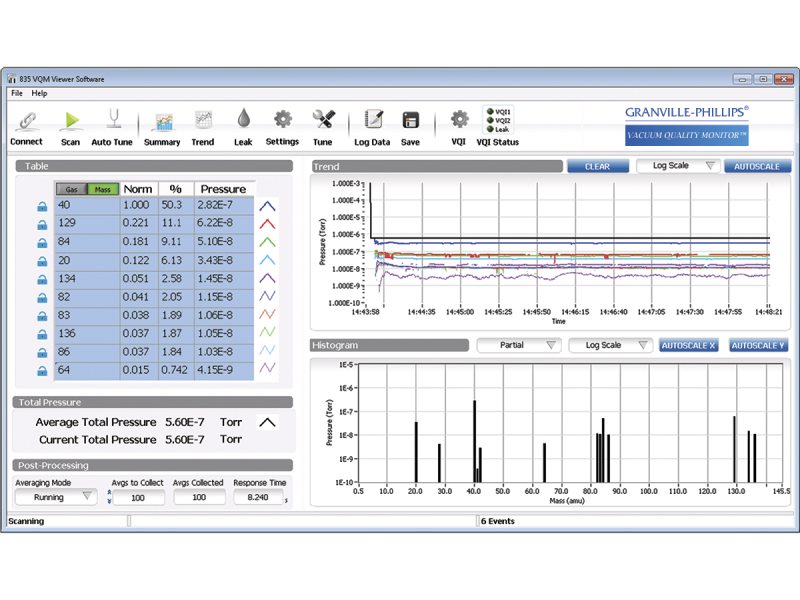

The 835400 Vacuum Quality Monitor Viewer software converts raw data from the Vacuum Quality Monitor System into actionable information.

Type

Software
Controller Configuration

Acquisition Modes via application control or external trigger control, calibration, ON/OFF, run/stop, gauge settings, user configuration, save and restore, factory setting restore
Compatible Controllers

835 VQM Controller 835 VQM MS Gauge 390802 Micro-Ion ATM Total Pressure Monitor Interface, USB Port USB 2.0, full speed (12 Mb/s)
Data Displayed

1 - 145 amu scan, total pressure, timestamp, status
Data Logging

Comma delimited text format, 1 - 145 amu scan (1 - 300 amu optional), total pressure, timestamp, status per scan, 85 ms logging rate using the recommended PC
Gas Recipe

Correlation fit against expected gas spectrum
Gas Recipe Response Time

85 ms, 1 - 145 amu, 10-gases, with the recommended PC

Leak Detection

User assigned limit and leak gas detection, audible tone relative to the quantity of leak
Gas Display Table

Automatic listing by amu or gas type (user selectable)
Minimum Computer Requirements

Intel® Core™ 2 Duo T7250 @ 2 GHz with 2.56 GB RAM or equivalent, 1024 x 768 pixel display, larger to take advantage of resizing, Windows 7 (32 or 64 bit), Windows XP (32 bit) SP2, .NET 3.5 Framework SP1 operating systems, 1.6 GB hard drive (more needed for large log files)
Pressure Trend

10 maximum plus total pressure, user selection in display table
Software Interface

Required: API, LabVIEW Vis, Optional: LabVIEW 2011 required to use LabVIEW Vis. .NET development platform required to use API. (Tested with Visual Studio 2010.)
Sensor Spectrum

Displayed, 1 - 145 amu or 1 - 300 amu
