Sorry, this product is no longer offered for sale.

670B Power Supply and Display with Signal Conditioner

Model: 670BD81

670B Power Supply and Display with Signal Conditioner

Model: 670BD81

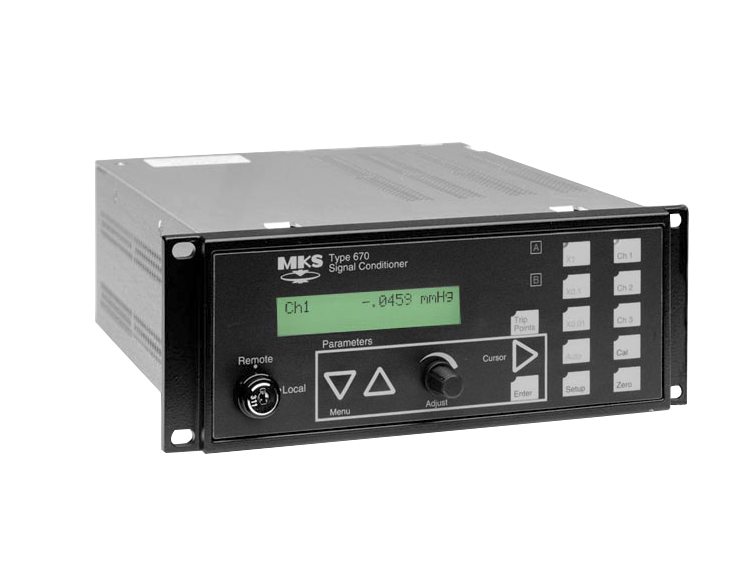

670b signal conditioner/display/power supply

Technical Specs

  • Type
    Signal Conditioner, Power Supply and Readout
  • Display
    2 line LCD, readings updated twice/second
  • Display Units
    Torr, mTorr, mmHg, mbar, Pa, kPa, inHg, inH20, cmH20, psi, % of Full Scale, ppm of Full Scale (All user - selectable)
  • Channels
    1
  • Output Power
    0 to ±10 VDC on each range into >10 kOhm load
  • Interface
    IEEE-488
  • Connectors
    IEEE - 488 Connector 24-pin female IEEE - 488, 1 standard pin assignment
  • Trip Points
    Two, 24 VAC/DC @ 1 Amp resistive (contact ratings), Two LEDs on front panel indicate status of each relay
  • Use
    690 and 698 from 0.1 - 25,000 mmHg (Torr) Full Scale
  • Ranges
    x1, x0.1, x0.01 of sensor Full Scale, manual or auto-ranging
  • Data Averaging
    0.1 to 10 sec, user - selectable
  • Response Time
    1, 40, or 400 msec, user - selectable
  • Resolution
    3.5, 4.5, or 5.5 digits, user - selectable (Note: Useable system resolution depends upon sensor choice and application.)
  • Operating Temperature
    15 - 40° C
  • Dimensions
    88 x 240 x 234 mm (3.5 x 9.5 x 9.25 in.)(height x width x depth)

Technical Specs

  • Type
    Signal Conditioner, Power Supply and Readout
  • Display
    2 line LCD, readings updated twice/second
  • Display Units
    Torr, mTorr, mmHg, mbar, Pa, kPa, inHg, inH20, cmH20, psi, % of Full Scale, ppm of Full Scale (All user - selectable)
  • Channels
    1
  • Output Power
    0 to ±10 VDC on each range into >10 kOhm load
  • Interface
    IEEE-488
  • Connectors
    IEEE - 488 Connector 24-pin female IEEE - 488, 1 standard pin assignment
  • Trip Points
    Two, 24 VAC/DC @ 1 Amp resistive (contact ratings), Two LEDs on front panel indicate status of each relay
  • Use
    690 and 698 from 0.1 - 25,000 mmHg (Torr) Full Scale
  • Ranges
    x1, x0.1, x0.01 of sensor Full Scale, manual or auto-ranging
  • Data Averaging
    0.1 to 10 sec, user - selectable
  • Response Time
    1, 40, or 400 msec, user - selectable
  • Resolution
    3.5, 4.5, or 5.5 digits, user - selectable (Note: Useable system resolution depends upon sensor choice and application.)
  • Operating Temperature
    15 - 40° C
  • Dimensions
    88 x 240 x 234 mm (3.5 x 9.5 x 9.25 in.)(height x width x depth)
