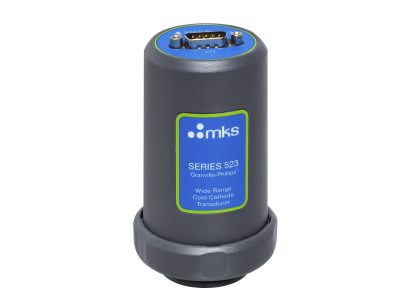

523 Granville-Phillips® Cold Cathode Vacuum Pressure Transducers
523 Granville-Phillips® Cold Cathode Vacuum Pressure Transducers
This product is no longer available, and has been replaced by the 972B DualMag™ Cold Cathode and MicroPirani™ Vacuum Pressure Transducer.
Specifications
- Digital CommunicationNo
- TypeVacuum Pressure Transducer
- SensorCold Cathode
- DisplayNo
- Installation OrientationAny
- Measurement Range1x10-7 Torr to Atmosphere (for N2 and Air)
- Operating Temperature0°C to 40°C (32°F to 104°F)
- Storage Temperature0°C to +70°C (32°F to 158°F)
- Power Requirements24 VDC, 2.5 W continuous
- Accuracy5 x 10-7 to 1 x 10-2 Torr: ±50%
over 10 Torr: ±50%
(N2) - Exposed MaterialsPolypropylene, 304 Stainless Steel
- Weight400 g
- ComplianceCE
Resources
Manuals
523 Transducer Quick Start Guide(260.8 kB, PDF)
Literature
523 Cold Cathode Transducer (archive)(311.1 kB, PDF)
Drawings & CADs
523 Transducer 3D Model File (.STEP)(2.3 MB, STEP)
