Sorry, this family of products is no longer available. The replacement family of products is 972B DualMag™ Cold Cathode and MicroPirani™ Vacuum Pressure Transducers.

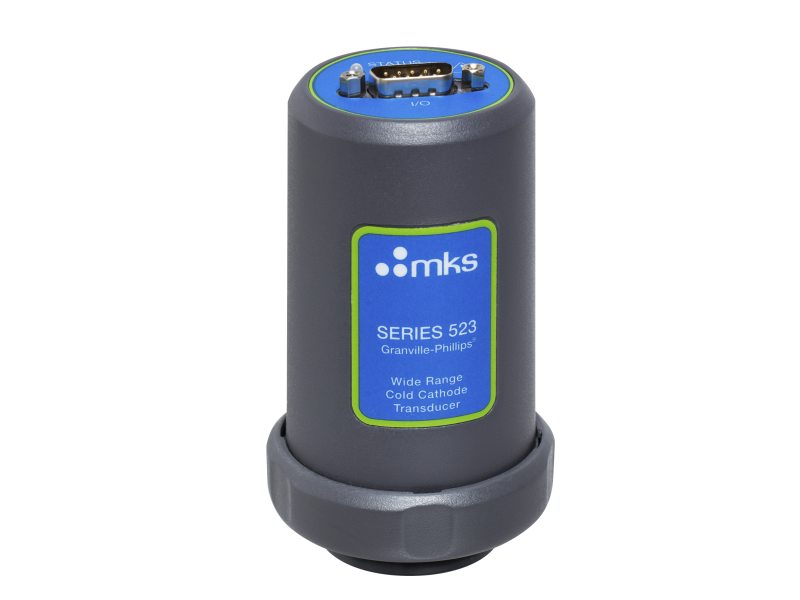

523 Granville-Phillips® Cold Cathode Vacuum Pressure Transducers
Overview
This product is no longer available, and has been replaced by the 972B DualMag™ Cold Cathode and MicroPirani™ Vacuum Pressure Transducer.
Specifications
-
Digital CommunicationNo
-
TypeVacuum Pressure Transducer
-
SensorCold Cathode
-
DisplayNo
-
Installation OrientationAny
-
Measurement Range1x10-7 Torr to Atmosphere (for N2 and Air)
-
Operating Temperature0°C to 40°C (32°F to 104°F)
-
Storage Temperature0°C to +70°C (32°F to 158°F)
-
Power Requirements24 VDC, 2.5 W continuous
-
Accuracy5 x 10-7 to 1 x 10-2 Torr: ±50%
over 10 Torr: ±50%
(N2) -
Exposed MaterialsPolypropylene, 304 Stainless Steel
-
Weight400 g
-
ComplianceCE
Resources
Manuals
- 523 Transducer Quick Start Guide (260.8 kB, PDF)
Literature
- 523 Cold Cathode Transducer (archive) (311.1 kB, PDF)
Drawings & CADs
- 523 Transducer 3D Model File (.STEP) (2.3 MB, STEP)
