Sorry, this product is no longer offered for sale. The recommended replacement product is 51C31TCD2BF010.

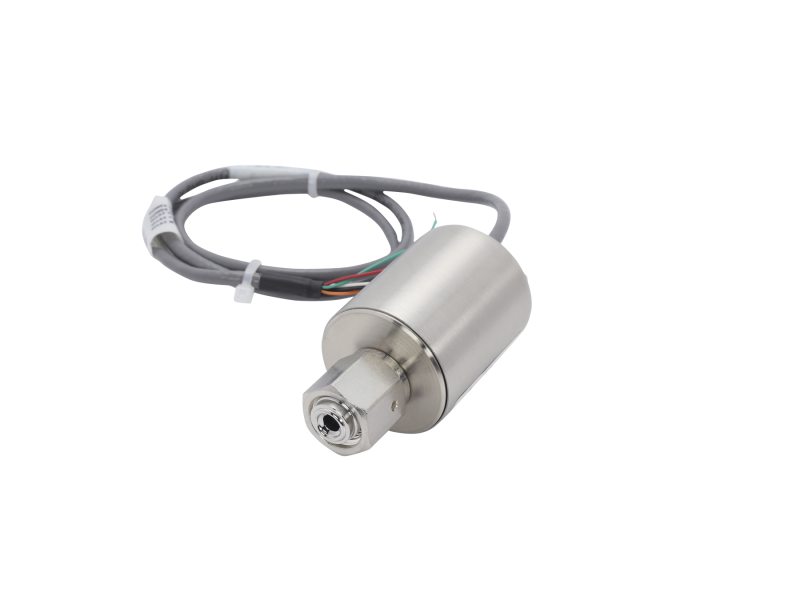

Pressure Switch, Single-Ended, 30 Torr, 4 VCR-F, Flying Leads, Referenced to Vacuum
Model: 51B31TCD2BF010
Pressure Switch, Single-Ended, 30 Torr, 4 VCR-F, Flying Leads, Referenced to Vacuum
Pressure Switch, Single-Ended, 30 Torr, 4 VCR-F, Flying Leads, Referenced to Vacuum
Model: 51B31TCD2BF010
Overview
Overview
The 51B31TCD2BF010 Single-end Pressure Switch is ranged for 30 Torr, has an 4 VCR-style female fitting, 20-30 VDC input voltage, energizes with pressure below the set point, 2 foot shielded cable with flying leads for electrical connection, and accuracy of 0.5% of Full Scale. It offers accurate and reliable protection for vacuum vacuum/pressure processes for applications where a DC signal output is not required. It is referenced to vacuum.
Technical Specs
-
TypePressure Switch
-
Measurement TypeAbsolute
-
ConfigurationSingle-ended
-
Pressure Range Full Scale30 Torr
-
Fitting Type4 VCR female
-
Connector2 ft. Flying Leads
-
Accuracy±0.5% of Full Scale (±temperature coefficient)
-
Trip Point10 Torr
-
Relay ModeEnergizes below the set point
-
Trip Point Dead Band±0.9 Torr (nominal)
-
Response Time<20 msec
-
Internal Volume3.3 cc
-
Temperature Coefficient±0.07% of Full Scale/°C
-
Materials Exposed to Process GasesInconel and 316L S.S.
-
Overpressure2 × Full Scale or 45 psia, whichever is greater
-
OutputsElectromechanical relay SPDT (isolated) contacts rated up to 1 Amp @ 30 VDC resistive.
-
Power Requirements20-30 VDC
-
Ambient Operating Temperature0 - 50°C
-
ComplianceCE
Resources & Downloads
Drawings & CADs
- 41, 51 Baratron® Pressure/Vacuum Switch Dimensional Drawing (36.9 kB, PDF)
