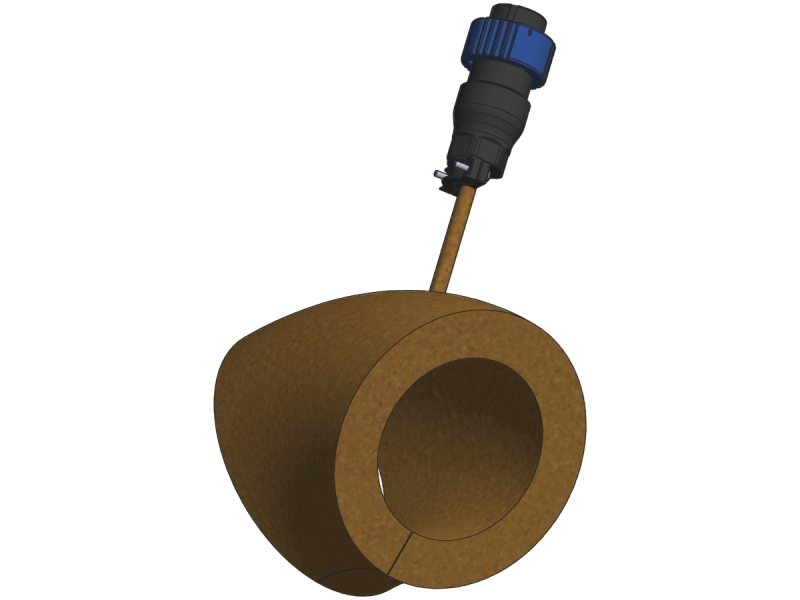

Heater Jacket, Polyimide, fits Weld 45 Degree Elbow, 2.5 in. OD Tube, 240V

Technical Specs

  • Series
    Series 49UL
  • Type
    45 Degree Elbow Heater Jacket
  • Insulation Material
    Polyimide
  • Tube OD
    2.50 in. (63.5 mm)
  • Flange Type
    Buttweld
  • For Use With
    1002345250
  • Temperature Range
    35 - 200°C
  • Voltage Requirements
    200-240 VAC
  • Current Requirements
    0.15 Amps
  • Modulus
    1.55 in. (39.4 mm)
  • Modulus 2
    1.55 in. (39.4 mm)
  • Bend Radius
    3.75 in. (95.3 mm)
  • Compliance
    CE, UL
