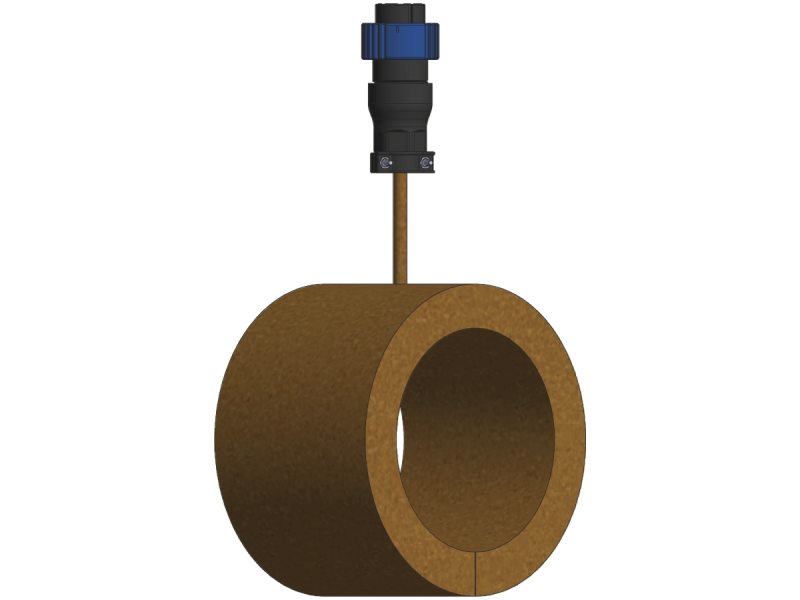

Heater Jacket, Polyimide, fits 3.19 in. Long Bellows, 2.0 in. Tubing, 240V

Technical Specs

  • Series
    Series 49UL
  • Type
    Bellows Heater Jacket
  • Insulation Material
    Polyimide
  • Tube OD
    2.00 in. (50.8 mm)
  • Flange Type
    ISO-KF
  • For Use With
    100314916
  • Length
    3.19 in. (81.0 mm)
  • Temperature Range
    35 - 200°C
  • Voltage Requirements
    200-240 VAC
  • Current Requirements
    0.15 Amps
  • Bellows Diameter
    2.41 in. (61.2 mm)
  • Compliance
    CE, UL
