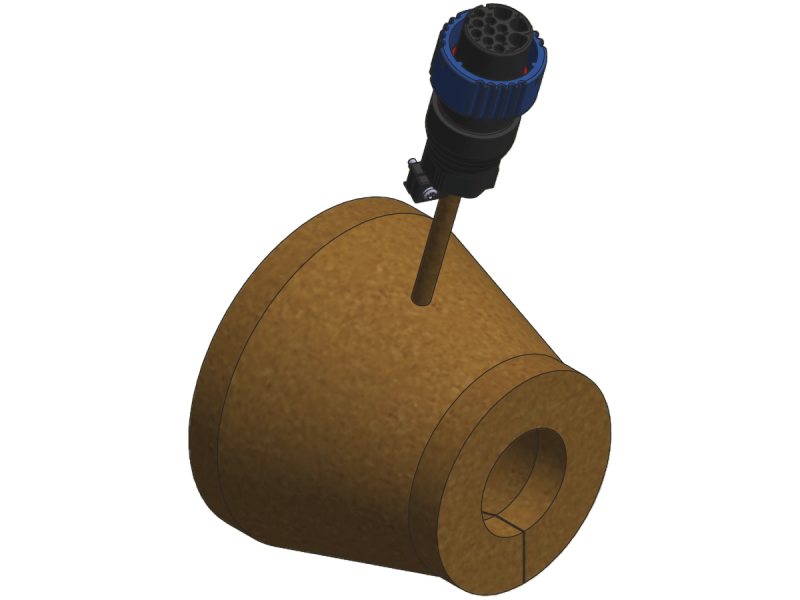

Heater Jacket, Polyimide, fits Buttweld Reducer, 2.0 to 1.5 in. Tubing, 240V

Technical Specs

  • Series
    Series 49UL
  • Type
    Reducer Heater Jacket
  • Insulation Material
    Polyimide
  • Tube OD
    2.00 in. (50.8 mm)
  • Tube OD 2
    1.50 in. (38.1 mm)
  • Flange Type
    Buttweld
  • For Use With
    10023200CR150
  • Length
    2.37 in. (60.2 mm)
  • Temperature Range
    35 - 200°C
  • Voltage Requirements
    200-240 VAC
  • Current Requirements
    0.20 Amps
  • Large End Tangent
    0.50 in. (12.7 mm)
  • Small End Tangent
    0.50 in. (12.7 mm)
  • Compliance
    CE, UL
