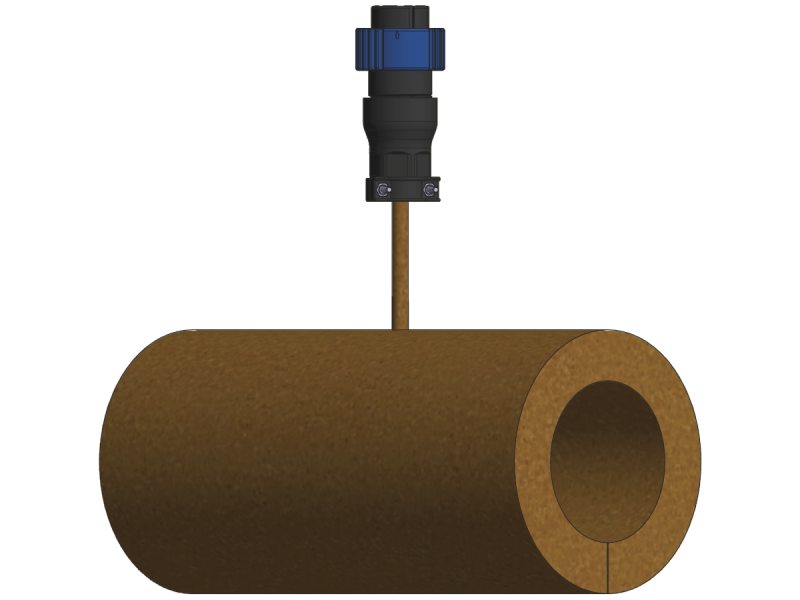

Heater Jacket, Polyimide, fits Thin Metal Wall Hose, 1.5 in. Tubing, 240V

Technical Specs

  • Series
    Series 49UL
  • Type
    Bellows Heater Jacket
  • Insulation Material
    Polyimide
  • Tube OD
    1.50 in. (38.1 mm)
  • Flange Type
    ISO-KF
  • For Use With
    100317415
  • Length
    9.19 in. (233.4 mm)
  • Temperature Range
    35 - 200°C
  • Voltage Requirements
    200-240 VAC
  • Current Requirements
    0.28 Amps
  • Bellows Diameter
    1.95 in. (49.5 mm)
  • Compliance
    CE, UL
