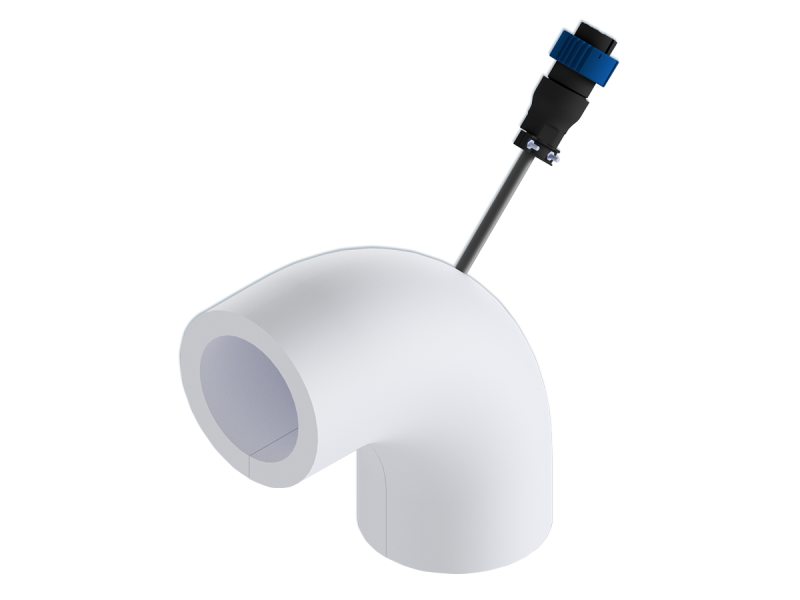

Heater Jacket, PTFE-Teflon®, fits Weld 90 Degree Elbow with Flange on one side, 1.5 in. Tubing, 240V

Technical Specs

  • Series
    Series 49UL
  • Type
    90 Degree Elbow Heater Jacket
  • Insulation Material
    PTFE-Teflon
  • Tube OD
    1.50 in. (38.1 mm)
  • Flange Type
    ISO-KF
  • Temperature Range
    35 - 200°C
  • Voltage Requirements
    200-240 VAC
  • Current Requirements
    0.18 Amps
  • Modulus
    2.25 in. (57.2 mm)
  • Modulus 2
    1.75 in. (44.5 mm)
  • Bend Radius
    2.25 in. (57.2 mm)
  • Compliance
    CE, UL
