Sorry, this product is no longer offered for sale. The recommended replacement product is bellows-polyimide-heater-120v.

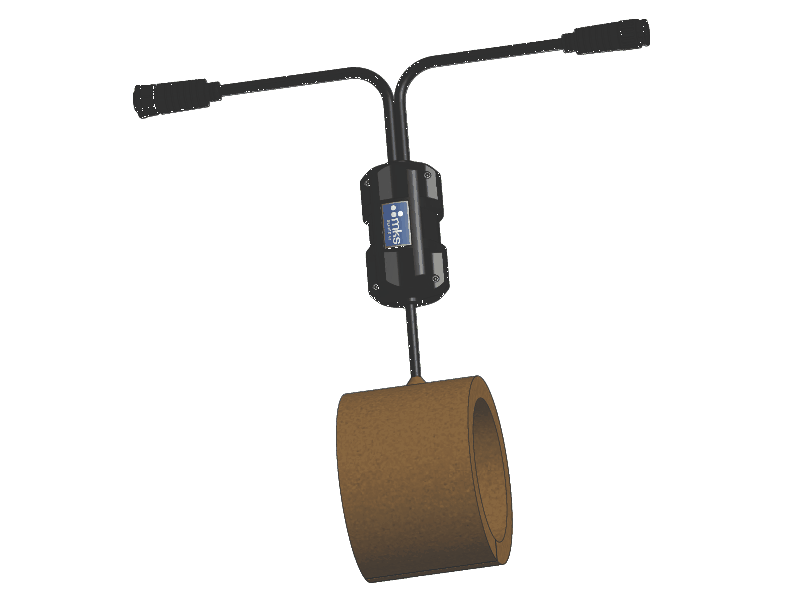

Legacy Series 49 Component Heaters
Model: 492030-1069
Legacy Series 49 Component Heaters
Model: 492030-1069
Overview
Overview
This product is no longer available. Please see the new Series 49UL Heaters for our current selection.
Technical Specs
- SeriesSeries 49
- TypeHeater Jacket
- Insulation MaterialPolyimide
- Component TypeBellows
- Tube OD3.0 in.
- Flange TypeISO-MF
- For Use With100763508
- Length4.0 in. (102 mm)
- Temperature Range35 - 200°C
- Voltage Requirements100-120 VAC
- Current Requirements0.42 Amps
- Heater Outer Diameter5.00 in. (127 mm)
- Bellows Diameter3.80 in. (97 mm)
Technical Specs
- SeriesSeries 49
- TypeHeater Jacket
- Insulation MaterialPolyimide
- Component TypeBellows
- Tube OD3.0 in.
- Flange TypeISO-MF
- For Use With100763508
- Length4.0 in. (102 mm)
- Temperature Range35 - 200°C
- Voltage Requirements100-120 VAC
- Current Requirements0.42 Amps
- Heater Outer Diameter5.00 in. (127 mm)
- Bellows Diameter3.80 in. (97 mm)
