Sorry, this product is no longer offered for sale. The recommended replacement product is 45-elbow-polyimide-heater-240v.

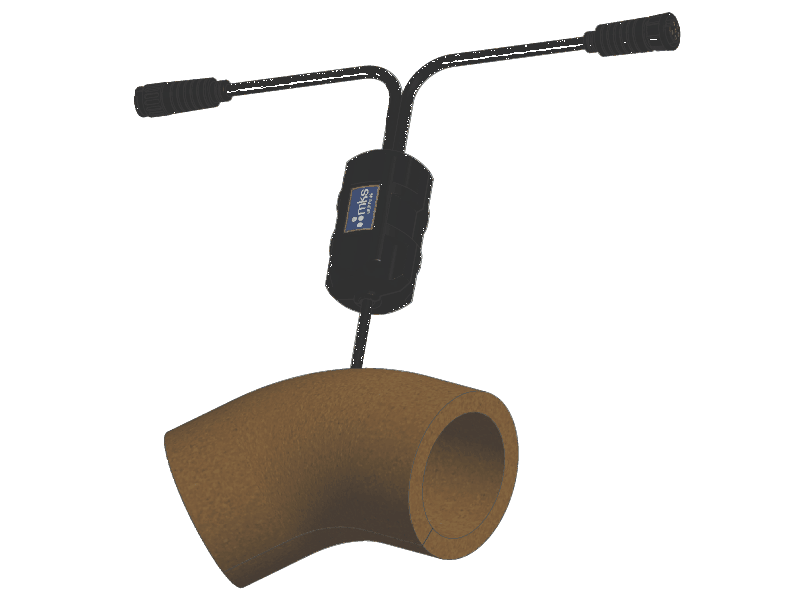

Legacy Series 49 Component Heaters
Model: 492015-2065
Legacy Series 49 Component Heaters
Model: 492015-2065
Overview
Overview
This product is no longer available. Please see the new Series 49UL Heaters for our current selection.
Technical Specs
- SeriesSeries 49
- TypeHeater Jacket
- Insulation MaterialPolyimide
- Component Type45 Degree Elbow with Tangents
- Tube OD1.5 in.
- Flange TypeButtweld
- For Use With1002345WT150
- Temperature Range35 - 200°C
- Voltage Requirements200-240 VAC
- Current Requirements0.16 Amps
- Modulus1.56 in. (40 mm)
- Bend Radius2.25 in. (57 mm)
Technical Specs
- SeriesSeries 49
- TypeHeater Jacket
- Insulation MaterialPolyimide
- Component Type45 Degree Elbow with Tangents
- Tube OD1.5 in.
- Flange TypeButtweld
- For Use With1002345WT150
- Temperature Range35 - 200°C
- Voltage Requirements200-240 VAC
- Current Requirements0.16 Amps
- Modulus1.56 in. (40 mm)
- Bend Radius2.25 in. (57 mm)
